Remove/Install Door Frame Seal - AR72.10-S-2120E

Model 447

Model 448

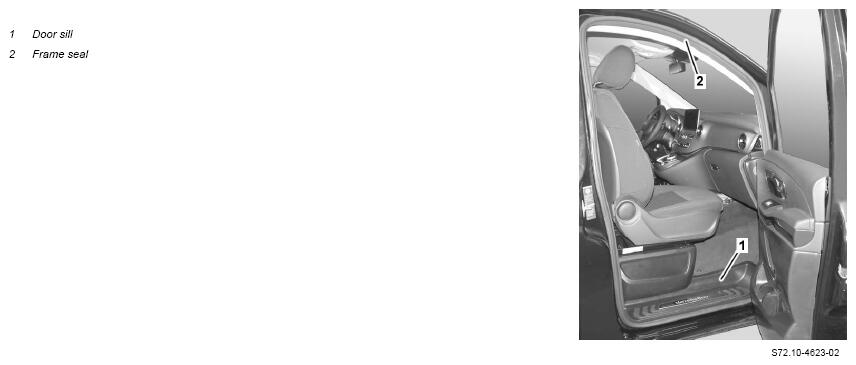

Shown On model 447.8 on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove door sill (1)		AR68.30-S-4100E
2	Remove frame seal (2) from body flange.	Mark position of joint on sealing frame (2) on body. Align position of joint on sealing frame (2) along markings made previously. Uniformly press on sealing frame (2).
3	Install in the reverse order
