Remove/Install Bearing Bracket Of Rear-End Door - AR72.20-S-4012E
Model 447.6/7
With Code W50 (Rear-end door, double-wing, 180 degrees without window)
Model 447.6/7
With Code W54 (2-wing rear-end door, 270 degrees)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

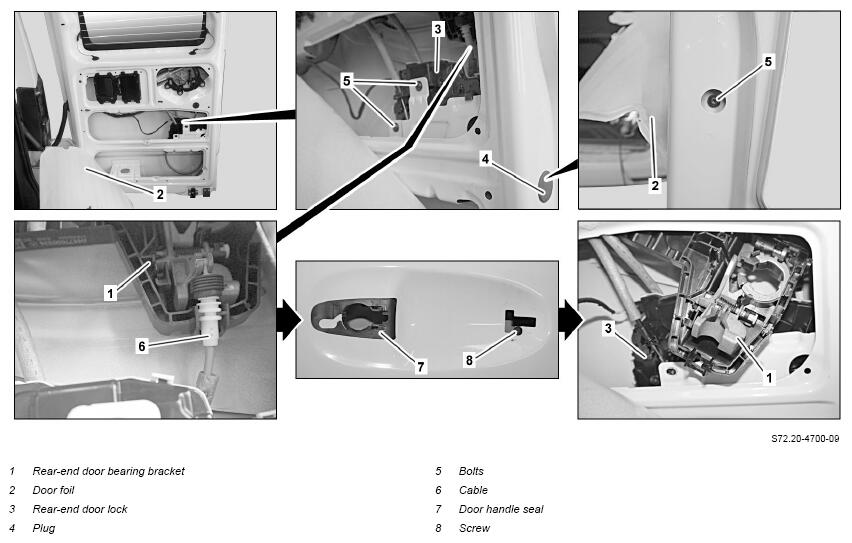

| 1 | Detach door foil (2) of rear-end door in upper area until door lock of rear-end door (3) can be accessed | AR72.20-S-4100E | |
| 2 | Remove outside door handle from rear-end door | AR72.20-S-2420E | |
| 3 | Remove stop plug (4) | ||
| 4 | Remove bolts (5) | ||
| 5 | Remove cable (6) from rear-end door bearing bracket (1) | ||
| 6 | Remove door handle seal (7) from rear-end door | ||
| 7 | Unscrew bolt (8) | ||
| 8 | Push door lock of rear-end door (3) to one side and remove rear-end door bearing bracket (1) downward out of rear-end door | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Perform function check of door lock of rear-end door (3) and outside door handle |
