Partially Remove/Install Right Rear Side Trim In Rear Passenger Compartment (Code: VS2KAMKLAP) - SM54.21-S-0250-02A

Model 447.7## 13 as of 844857 up to 853657

with code FR8 (Rear view camera)

with code V23 (Interior trim, premium version)

with code XM0 (Facelift)

Model 447.8## #3 as of 865110 up to 921571

with code FR8 (Rear view camera)

with code XM0 (Facelift)

except code ZK7 (Equipment line MARCO POLO)

Model 447.8## #3 as of 865119 up to 921573

with code JS1 (360° camera (SURROUND VIEW))

with code XM0 (Facelift)

except code ZK7 (Equipment line MARCO POLO)

Number	Designation		Model 447, 448
BA72.20-Z-1008-03KOJ	Bolt, guide to body	Nm	8

Courtesy of MERCEDES-BENZ USA

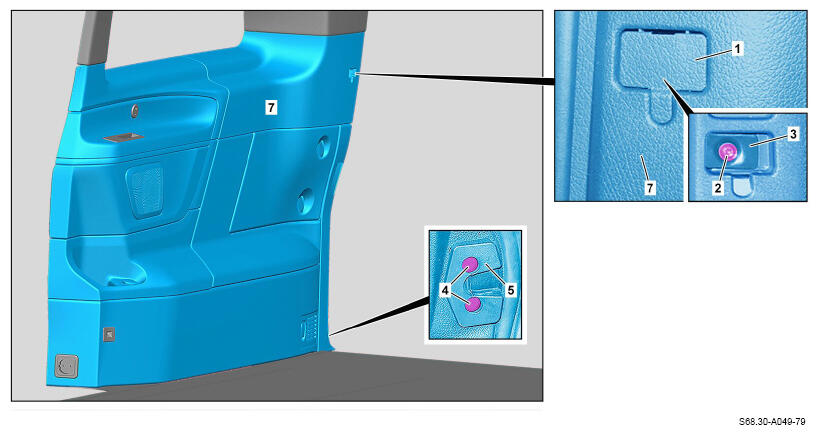

1. Unclip and remove cover (1).
2. Unscrew the screw (2) and remove the holder (3).
3. Mark installation position of the guide (5).
4. Remove screws (4) and remove guide (5).

   : Note marking of the installation position of the guide (5).

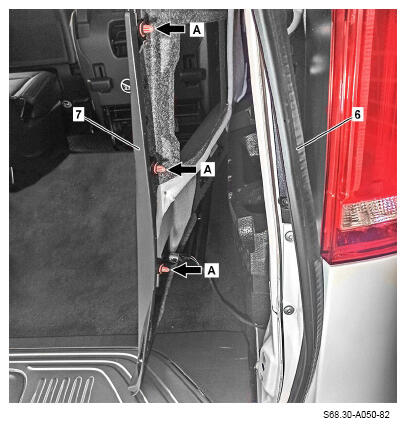

5. Detach sealing frame (6) on liftgate in area of side trim (7).
6. Detach retaining clips of side trim (7) in area of arrows (A) using long wedge.

   Courtesy of MERCEDES-BENZ USA

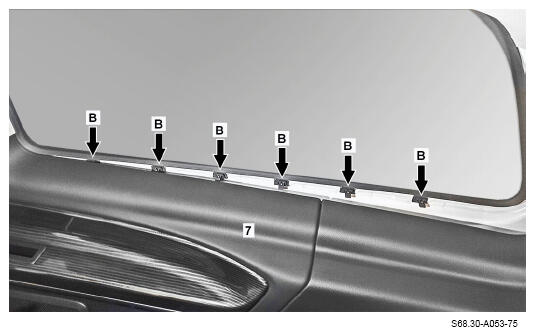

7. Insert long wedge between side trim (7) and window frame in area of arrows (B) and release retaining clamps.

   : Carefully detach side paneling (7).

   Otherwise, the side trim (7) and the retaining clips can be damaged.

   : Make sure retaining clips are seated correctly on window frame rabbet.

   Courtesy of MERCEDES-BENZ USA

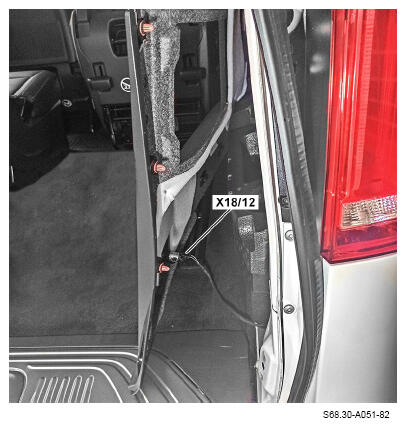

8. Carefully remove side trim (7) until electrical connector on rear side is accessible.
9. Disconnect electrical connector from right rear load compartment socket (X58/12).
10. Install in the reverse order.
