Remove/Install Wiring Harness For Front Brake Wear Indicator - AR54.18-S-7433E
Model 447, 448
| Remove/install | |||

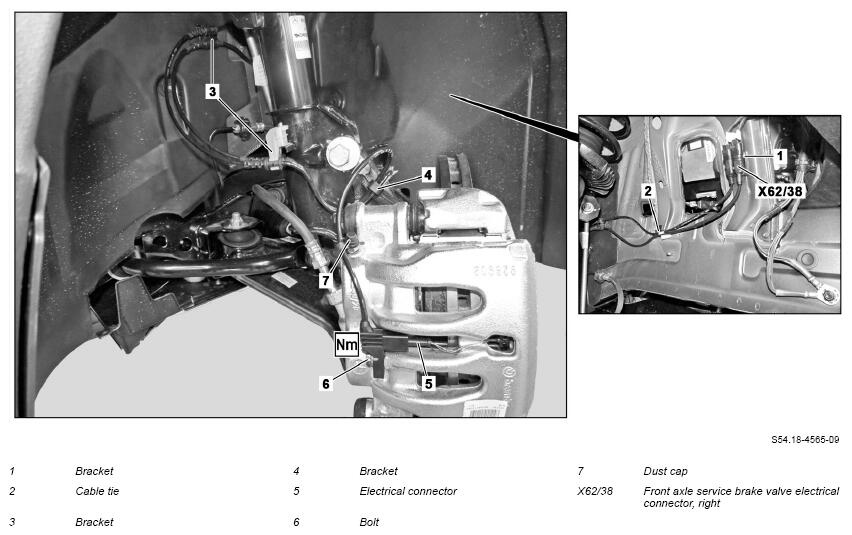

| 1 | Remove right front wheel | AR40.10-S-1100E | |
| 2 | Remove right fender liner in fender far enough to gain access to the right electrical connection for the front axle service brake valve (X62/38) | AR88.10-S-1300E | |
| 3 | Detach right electrical connection from front axle service brake valve (X62/38) | ||
| 4 | Remove right electrical connection of front axle service brake valve (X62/38) from bracket (1) | If damage is present ↓ Replace bracket (1) |
|
| 5 | Remove cable ties (2) | ||
| 6 | Unclip electrical wiring harness of right front brake wear sensor from brackets (3, 4) | If damage is present ↓ Replace bracket (3, 4) |
|
| 7 | Detach right front electrical connection (5) from brake wear sensor | ||
| 8 | Remove bolt (6) | *BA42.10-Z-1004-03KOB | |
| 9 | Open dust cap (7) and remove wiring harness from right front brake wear sensor | ||
| 10 | Install in the reverse order |
FRONT AXLE FLOATING CALIPER
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA42.10-Z-1004-03KOB | Screw/bolt, brake wear indicator to floating brake caliper | Nm | 9 |
