Remove/Install Touchpad Control Unit - AR54.21-S-0503EA
Model 447, 448
With Code E1T (Touchpad)
Except Code XM7 (MOPF II)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

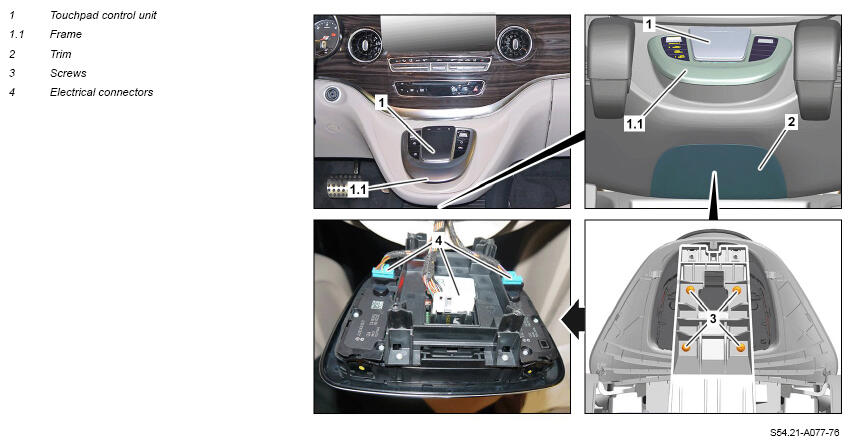

| 1 | Commission touchpad control unit (1). | If the touchpad control unit (1) is replaced. | |
| AD00.00-S-2000-04E | |||
| 2 | Remove center console. | Model 447.8, 448.8 with code FG6 (Center console with refrigerator box) | AR68.20-S-2000CH |
| 3 | Remove trim (2). | Fig 2 | |
| 4 | Remove screws (3). | ||
| 5 | Remove touchpad control unit (1) with frame (1.1) far enough until electrical connectors (4) are accessible. | ||
| 6 | Disconnect electrical connectors (4) and remove touchpad control unit (1) with frame (1.1). | ||
| 7 | Remove left lower control panel control unit and right lower control panel control unit. | If the touchpad control unit (1) is replaced. Model 447.8, 448.8 except code XM7 (Facelift II) |
AR54.21-S-1263E |
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Perform function test of touchpad control unit (1). |
