Remove/Install Rear Switch For Vent Window - AR54.25-S-3600E

Model 447.7/8

With Code W32 (Rear passenger compartment electric pop-out windows)

Model 448.7

With Code W32 (Rear passenger compartment electric pop-out windows)

Courtesy of MERCEDES-BENZ USA

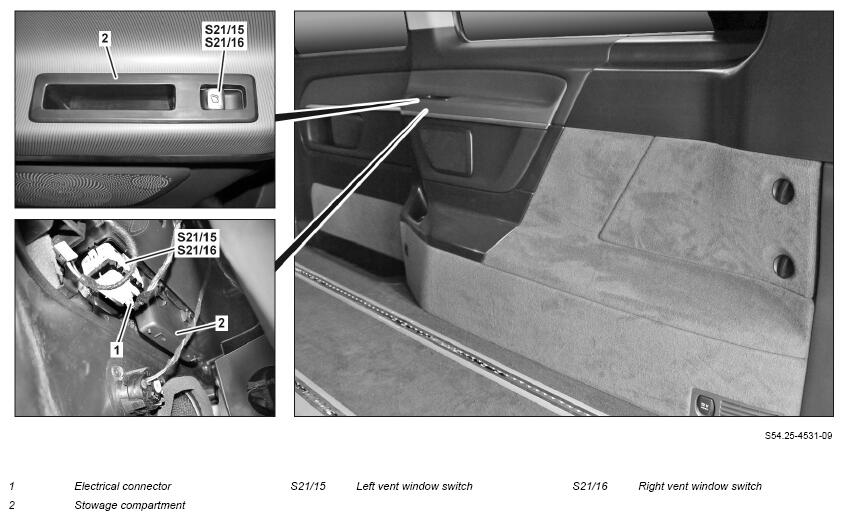

Shown on model 447.8

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove paneling on left and right C-pillar	Model 447.7 with code V23 (Interior trim, premium version) with code W32 (Rear passenger compartment electric pop-out windows) Model 447.8 with code W32 (Rear passenger compartment electric pop-out windows) Model 448.7 with code V23 (Interior trim, premium version) with code W32 (Rear passenger compartment electric pop-out windows)	AR68.30-S-4490E
2	Unfasten left or right side trim panel in rear in area of C-pillar, until the electrical connection (1) is accessible	: Check sealing frame of right sliding door is correctly positioned on rear side trim panel. Model 447.7/8, 448.7 with code T19 (Left sliding door) : Check sealing frame of left sliding door is correctly positioned on rear side trim panel
3	Disconnect electrical connection (1) at left pop-out window switch (S21/15) or at right pop-out window switch (S21/16)
4	Remove stowage compartment (2) along with left pop-out window switch (S21/15) or right pop-out window switch (S21/16)
5	Remove left pop-out window switch (S21/15) or right pop-out window switch (S21/16) from stowage compartment (2)
6	Install in the reverse order
	Check
7	Check left pop-out window switch (S21/15) or right pop-out window switch (S21/16) functions properly
