Remove/Install Multifunction Camera - AR54.21-S-3000E
Model 447, 448
With Code ET4 (Active Distance Assist DISTRONIC)
Model 447, 448
With Code JA9 (Traffic Sign Assist)
Model 447, 448
With Code LG2 (LED Intelligent Light System)
MODIFICATION NOTES
| 25.11.2016 | Only covers (10, 11) have to be removed; the inside mirror can remain mounted. | Operation step 2 |
Shown on model 447 with removed inside rearview mirror
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||

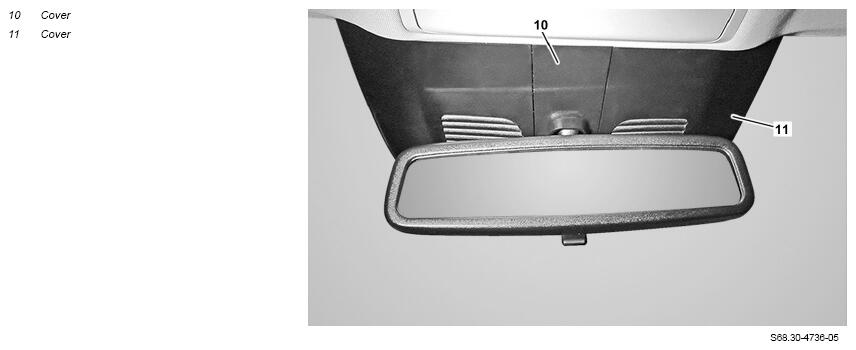

| 2 | Unclip and remove cover (10) | Fig 2 | |
| 3 | Remove cover (11) | ||
| 4 | Disconnect electrical connector (1) | ||

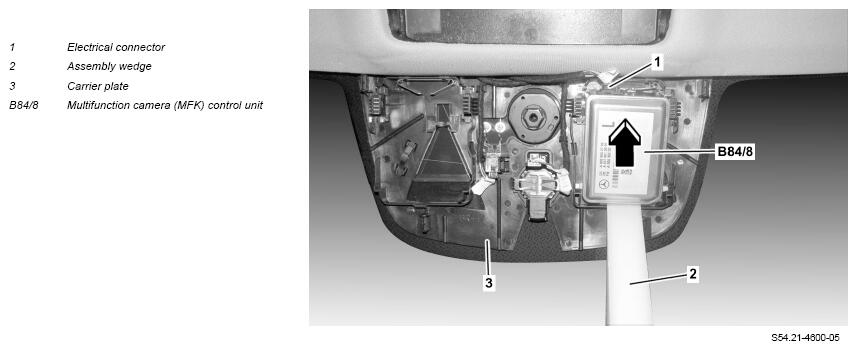

| 5 | Use assembly wedge (2), as shown, to press multifunction camera (MFK) control unit (B84/8) in direction of arrow and remove from carrier plate (3) | Fig 1 | |
| 6 | Install in the reverse order | ||
| 7 | Teach-in multifunction camera (MFK) control unit (B84/8) using diagnostic system | ||
| AD00.00-S-2000-04E | |||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B |
