Remove/Install Exterior 230 V Socket - AR54.10-S-1022E

Model 447.7

With Code E3V (External connection 230 V)

With Code ZH6 (Marco Polo ACTIVITY)

Model 447.8

With Code E3V (External connection 230 V)

With Code Z93 (Marco Polo HORIZON)

Model 447.8

With Code ZK7 (Equipment line MARCO POLO)

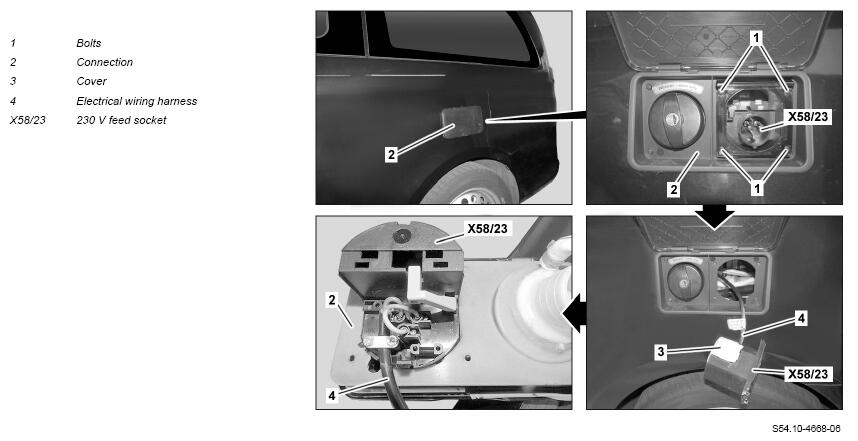

Shown on model 447.8 With Code ZK7 (MARCO POLO equipment line)

Courtesy of MERCEDES-BENZ USA

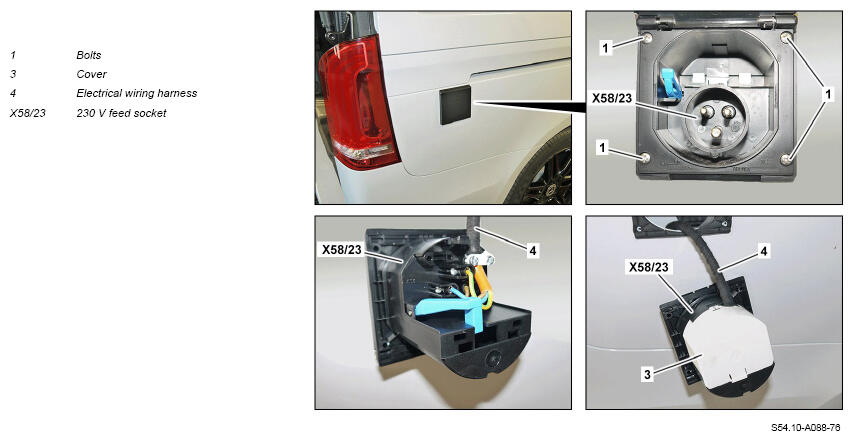

Shown on model 447.8 With Code Z93 (Marco Polo HORIZON) and With Code E3V (External connection 230 V)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove voltage from 230 V on-board electrical system.		AR54.10-S-0055E
2	Remove bolts (1).
3.1	Pull 230 V feed socket (X58/23) out of connection (2) until the cover (3) is accessible.	Model 447.8 with code ZK7 (Equipment line MARCO POLO)
3.2	Remove 230_V feed socket (X58/23) from side wall until cover (3) is accessible.	Model 447.7 with code E3V (External connection 230 V) with code ZH6 (Marco Polo ACTIVITY) Model 447.8 with code E3V (External connection 230 V) with code Z93 (Marco Polo HORIZON)
4	Remove cover (3).
5	Mark and remove electrical wiring harness (4) at 230 V feed socket (X58/23) and remove 230 V feed socket (X58/23).	: Observe marking of electrical wiring harness (4). Otherwise a short circuit will occur.
6	Install in the reverse order.
	Check
7	Connect battery charger power supply plug to 230 V feed socket (X58/23) and perform function check on 230 V feed socket (X58/23).	Read off the charging voltage from the central electronics display unit in the cockpit.
