Remove/Install Control Unit For Onboard Logic Unit - AR54.21-S-0065E

Model 447

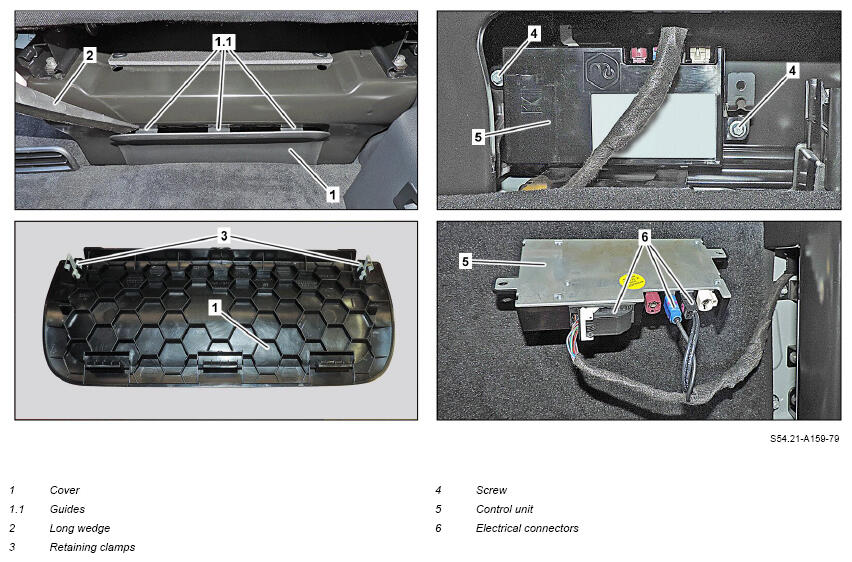

G16482890Courtesy of MERCEDES-BENZ USA

Shown on model 447.8

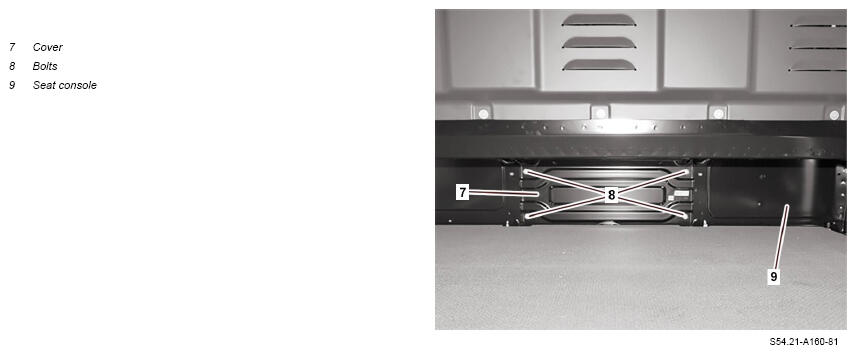

Shown on model 447.6 With Code D50 (Full-width partition wall) and With Code S23 (Front passenger bench seat)

G16482891Courtesy of MERCEDES-BENZ USA
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on carrying out repair work in the vehicle interior   AH68.00-D-0001-01KOS
  Deactivation
1 Park vehicle in an area with cell phone reception. If control unit (5) is replaced.
IMPORTANT The vehicle requires mobile phone reception to perform the software disassembly process of the control unit (5).
2 Connect charger to maintain on-board electrical system voltage. If control unit (5) is replaced.
IMPORTANT Leave charger switched on during entire programming.		 AR54.10-S-1127E
3 Contact hotline via XSF ticket. If control unit (5) is replaced.
REFER TO DESCRIPTION & OPERATION Service Information: Onboard Logic Unit (OLU) Model 447.6/7
with code JO3 (OLU Connect Unit)
with code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code JO2 (OLU pre-installation)
For Germany only Model 447.6/7
with code JO3 (OLU Connect Unit)
with code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except code JO2 (OLU pre-installation)
For Germany only Model 447.6/7 with code JO3 (OLU Connect Unit)
with code ME0 (Electric motor 85 kW)
except code JO2 (OLU pre-installation)
For Germany only Model 447.6/7
with code JO3 (OLU Connect Unit)
with code ME4 (Electric motor 145 kW)
except code JO2 (OLU pre-installation)
For Germany only
IMPORTANT The following must be entered when creating the XSF ticket:
"OLU Deactivation" symptom VIN
Serial number of control unit (5)
Add comment under problem description: "HW replacement - Deactivation of service"		 SI82.85-S-0050B
4 Switch on ignition and follow the instructions from the hotline. If control unit (5) is replaced and the hotline makes contact by telephone.
IMPORTANT The hotline initiates the uninstallation of the target software of the control unit (5) via the cellular telephone system as soon as the ignition of the vehicle is switched on.
5 Switch off ignition and follow the instructions from the hotline. If the control unit (5) is replaced and the telephone contact with the hotline is accepted.
IMPORTANT If the target software is successfully uninstalled, the hotline makes contact by telephone with the request to switch off the ignition.
If the uninstallation was not successful, follow the instructions from the hotline to rectify the problem.
IMPORTANT The XSF ticket is closed by the hotline as soon as the uninstallation process of the target software has been completed successfully.
6 Disconnect charger. If control unit (5) is replaced. AR54.10-S-1127E
REMOVINGINSTALLING Remove/install
7 Switch off ignition and store transmitter key outside of transmission range (min. 2 m). If control unit (5) is reused.
8.1 Unclip and remove cover (1) at right seat base. Model 447.6
except code D50 (Full-length partition)
except code D51 (Entire partition with 1 window)
except code D62 (Prov.f.retrofitting of partition)
except code S23 (Co-driver's seat double seat)
Model 447.7
except code S23 (Co-driver's seat double seat)
Model 447.8
REMOVAL IMPORTANT Release guides (1.1) of cover (1) with a SPECIAL TOOL long wedge (2) and release cover (1) at retaining clamps (3).
INSTALLATION IMPORTANT Insert guides (1.1) of cover (1) under seat base and engage retaining clamps (3).
SPECIAL TOOL Long wedge		 Fig 1
8.2 Unscrew screws (8) and remove cover (7) from seat console (9). Model 447.6/7
with code S23 (Co-driver's seat double seat)
Model 447.6
with code D50 (Full-length partition)
Model 447.6
with code D51 (Entire partition with 1 window)
Model 447.6
with code D62 (Prov.f.retrofitting of partition)
9 Unscrew screws (4) and guide out control unit (5) until electrical connectors (6) become accessible.
10 Release and disconnect electrical connectors (6). IMPORTANT Number of electrical connectors (6) can vary.
11 Install in the reverse order.
  Perform initial startup
12 Perform SCN coding of control unit (5). If control unit (5) was replaced.
REFER TO SELF-DIAGNOSTIC SYSTEMS   IMPORTANT With SCN coding, the control unit (5) in the 1st stage is operational and on-line. AD00.00-S-2000-04E
13 Park vehicle in an area with cell phone reception. IMPORTANT Vehicle required to perform the software installation process of the control unit (5) and for the function test of the cell phone reception.
14 Activate on-board electrical system trickle charge. If control unit (5) was replaced.
IMPORTANT Leave charger switched on during entire programming.		 AR54.10-S-1127E
15 Contact hotline via XSF ticket. If control unit (5) was replaced.
REFER TO DESCRIPTION & OPERATION Service Information: Onboard Logic Unit (OLU) Model 447.6/7
with code JO3 (OLU Connect Unit)
with code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code JO2 (OLU pre-installation)
For Germany only Model 447.6/7
with code JO3 (OLU Connect Unit)
with code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except code JO2 (OLU pre-installation)
For Germany only Model 447.6/7
with code JO3 (OLU Connect Unit)
with code ME0 (Electric motor 85 kW)
except code JO2 (OLU pre-installation)
For Germany only Model 447.6/7
with code JO3 (OLU Connect Unit)
with code ME4 (Electric motor 145 kW)
except code JO2 (OLU pre-installation)
For Germany only
IMPORTANT The "OLU activation" symptom, the FIN and the serial number of the control unit (5) must be communicated via XSF ticket.		 SI82.85-S-0050B
16 Switch on ignition and follow the instructions from the hotline. If the control unit (5) has been replaced and the hotline makes contact by telephone.
IMPORTANT The hotline initiates the installation of the target software of the control unit (5) via the cellular telephone system as soon as the ignition of the vehicle is switched on.
17 Switch off ignition and follow the instructions from the hotline. If the control unit (5) has been replaced and the telephone contact with the hotline is accepted.
IMPORTANT If the target software is successfully installed, the hotline makes contact by telephone with the request to switch off the ignition.
If the installation was not successful, follow the instructions from the hotline to rectify the problem.
IMPORTANT The XSF ticket is closed by the hotline as soon as the installation process of the target software has been completed successfully.
18 Perform function test via actual value query or fault codes.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-S-2000-04E
19 Disconnect charger. If control unit (5) was replaced. AR54.10-S-1127E
Fig 1: Identifying Long Wedge (115 589 03 59 00)
G07070400Courtesy of MERCEDES-BENZ USA
