Remove/Install Additional Indicator Module Control Unit - AR54.15-S-1304E
Model 447.6/7
With Code L84 (Blinker lights behind on roof)
| Remove/install | |||
| 1.1 | Remove right rear side paneling in load compartment. | MODEL 447.6 with CODE L84 (Blinker lights behind on roof) MODEL 447.7 with CODE L84 (Blinker lights behind on roof) without CODE V23 (Interior panelling higher execution) |
AR68.30-S-1180E |
| 1.2 | Remove side paneling in rear on right | MODEL 447.7 with CODE L84 (Blinker lights behind on roof) with CODE V23 (Interior panelling higher execution) |
AR68.30-S-1206E |

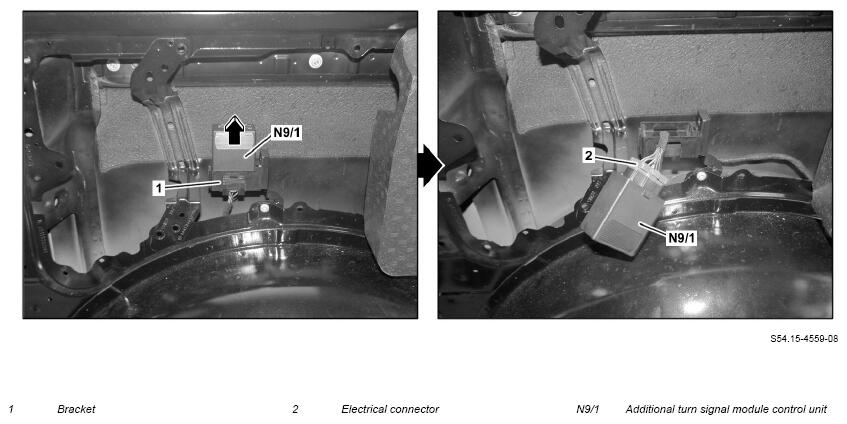

| 2 | Detach additional turn signal module control unit (N9/1) in direction of arrow from bracket (1) | ||
| 3 | Detach electrical connection (2) and remove additional turn signal module control unit (N9/1) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check function of turn signal system |
