Check And Correct Battery Fluid Level - AR54.10-S-5410E

Model 447, 448

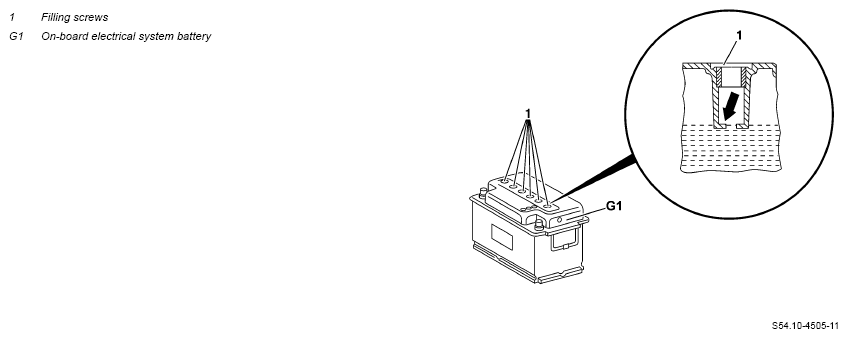

Shown on on-board electrical system battery (G1)

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Remove
1	Remove corresponding battery	Remove on-board electrical system battery (G1)	AR54.10-S-0005E
		Remove the auxiliary battery Model 447 with code E28 (Additional battery for retrofitted consumers) Model 447 with code EE8 (Battery 12V 100 Ah)	AR54.10-S-0007E
2	Remove filling screws (1)
	Check
3	Check battery fluid level of individual battery cells	The battery fluid level is correct, when the battery acid is level with the maximum mark (arrow) in the filler opening. If the battery fluid level is too low. ↓ Correct battery fluid level. Use only distilled water for topping up. Do not fill above the max. mark (arrow).
	Install
4	Tighten filling screws (1)
5	Install battery	Install on-board electrical system battery (G1)	AR54.10-S-0005E
		Install additional battery Model 447 with code E28 (Additional battery for retrofitted consumers) Model 447 with code EE8 (Battery 12V 100 Ah)	AR54.10-S-0007E
