(Remove/Install Instrument Cluster - AR54.30-S-6015E)
Model 447.8, 448.8
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Buffer basic data of instrument cluster (KI) control unit (A1/1) in diagnostic system | When replacing instrument cluster (IC) control unit (A1/1). | |
| AD00.00-S-2000-04E | |||
| 2 | Remove trim element on driver's side | AR68.10-S-1180E | |
| 3 | Remove trim element on front passenger side | AR68.10-S-1180E | |
| 4 | Move steering wheel all the way to the rear and down | ||
| 5 | Switch off ignition and remove transmitter key | ||

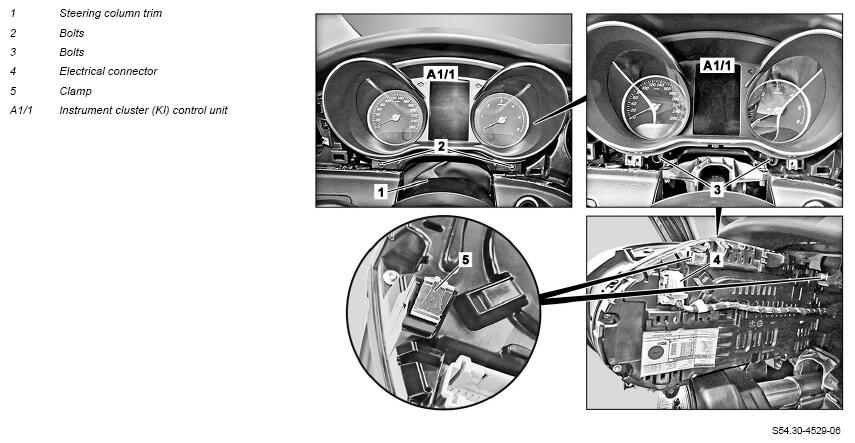

| 6 | Remove bolts (2) and detach steering column trim (1) | ||
| 7 | Loosen bolts (3) | i236 |
|
| 8 | Unclip instrument cluster (IC) control unit (A1/1) at clips (5), and remove far enough from instrument panel to gain access to the electrical connection (4) | ||
| 9 | Detach electrical connection (4) and remove instrument cluster (IC) control unit (A1/1) | ||
| 10 | Install in the reverse order | ||
| Check | |||
| 11 | Run function test of instrument cluster (IC) control unit (A1/1) |
