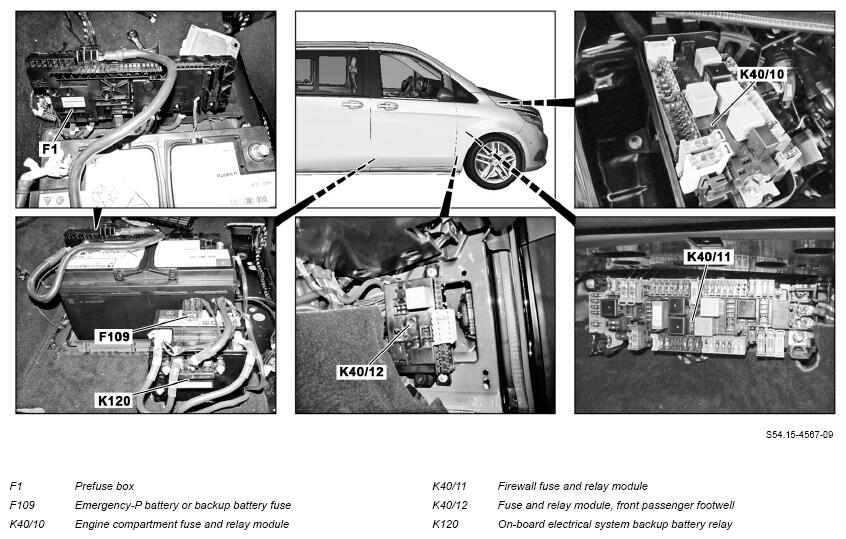

Fuse And Relay Box, As-Built Configuration - GF54.15-S-0800TRF
Model 447
With Code XM0 (Facelift)
Shown on model 447.8
| Assignment of engine compartment fuse and relay module | Model 447.6/7 | GF54.15-S-1256-36TRF | |
| Model 447.8 | GF54.15-S-1256-36TRG | ||
| Assignment of pre-fuse box in vehicle interior | GF54.15-S-1256-37TRF | ||
| Assignment of fuse and relay module, right A-pillar | GF54.15-S-1256-38TRF | ||
| Assignment of right footwell firewall fuse and relay module | GF54.15-S-1256-39TRF |
