Assignment Of Pre-Fuse Box In Vehicle Interior - GF54.15-S-1256-37TRF
Model 447
With Code XM0 (Facelift)

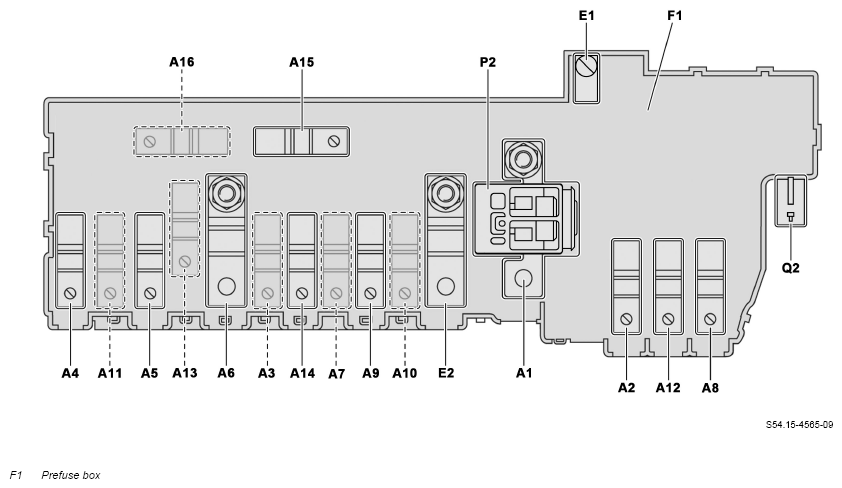

View from front
Model 447.6/7
| Connection | Fuse | Circuit | Wire Identification | Assignment | Restrictive validity | Rating in amperes (A) |
|---|---|---|---|---|---|---|
| A1 | Pyrofuse A1 (F1fA1) | 30 | 59.0 BK | Starter (M1) | - | - |
| A2 | Pre-fuse A2 (F1fA2) | 30 | 10.0 RDBK | Glow output stage (N14/8) | Engine 651, 654 | 100 |
| A2 | Pre-fuse A2 (F1fA2) | 30 | 10.0 RDBK | Glow output stage (N14/9) | Engine 622 | 100 |
| A3 | Pre-fuse A3 (F1fA3) | 30 | 6.0 RDBU | Electric controller unit for fully integrated transmission control (VGS) (N15/15) | With code G43 (9G-TRONIC) | 50 |
| A4 | Pre-fuse A4 (F1fA4) | 30 | 6.0 RD | Rear socket relay (K127) | With code ES3 (12V sockets for rear left and right seat rows) | 50 |
| A5 | Pre-fuse A5 (F1fA5) | 30 | - | Not assigned | - | 100 |
| A6 | Pre-fuse A6 (F1fA6) | 30 | 35.0 RD | Firewall fuse and relay module (K40/11) | - | 250 |
| A7 | Pre-fuse A7 (F1fA7) | 30 | 16.0 RD | Engine compartment fuse and relay module (K40/10) | - | 150 |
| A8 | Pre-fuse A8 (F1fA8) | 30 | 16.0 RD | Fuse and relay module, front passenger footwell (K40/12) | - | 150 |
| A9 | Pre-fuse A9 (F1fA9) | 30 | - | Not assigned | - | 100 |
| A10 | Pre-fuse A10 (F1fA10) | 30 | 10.0 RD | Electric fan (M91) | Engine 274, 622, 651 | 100 |
| A11 | Pre-fuse A11 (F1fA11) | 30 | 12.0 RD | Electric power steering (ES) control unit (N68) | - | 100 |
| A12 | Pre-fuse A12 (F1fA12) | 30 | 16.0 RD | Battery cutoff relay (K57) | With code E28 (Additional battery for retrofitted consumers) or with code E36 (Cutoff relay for additional battery) or with code ZH6 (Marco Polo ACTIVITY) | 150 |
| A13 | Pre-fuse A13 (F1fA13) | 30 | 10.0 RD | Signal acquisition and actuation module (SAM) control unit (N10/1) via pre-fuse box circuit 30 end sleeve (Z4/6) | - | 40 |
| A14 | Pre-fuse A14 (F1fA14) | 30 | - | Not assigned | - | 40 |
| A15 | Pre-fuse A15 (F1fA15) | 30 | - | Not assigned | - | 40 |
| A16 | Pre-fuse A16 (F1fA16) | 30 | - | Not assigned | - | 150 |
| E1 | - | 30 | 50.0 BK | On-board electrical system battery (G1) | - | - |
| E2 | Pre-fuse E2 (F1fE2) | 30 | 85.0 BK | Alternator (G2) | - | 350 |
| P2 (Pin 1) | - | - | 0.5 PKYE | Supplemental Restraint System (SRS) control unit (N2/18) | - | - |
| P2 (Pin 2) | - | - | 0.5 GY | Supplemental Restraint System (SRS) control unit (N2/18) | - | - |
| Q2 (Pin 1) | - | Signal | 0.5 BKBU | Signal acquisition and actuation module (SAM) control unit (N10/1) | With CODE MJ8 (ECO start/stop function) | - |
| Q2 (Pin 2) | - | 31 | 0.5 BN | Right vehicle interior firewall ground point (W43/2) | With CODE MJ8 (ECO start/stop function) | - |
Model 447.8
| Connection | Fuse | Circuit | Wire Identification | Assignment | Restrictive validity | Rating in amperes (A) |
|---|---|---|---|---|---|---|
| A1 | Pyrofuse A1 (F1fA1) | 30 | 59.0 BK | Starter (M1) | - | - |
| A2 | Pre-fuse A2 (F1fA2) | 30 | 10.0 RDBK | Glow output stage (N14/8) | Engine 651, 654 | 100 |
| A3 | Pre-fuse A3 (F1fA3) | 30 | 6.0 RDBU | Electric controller unit for fully integrated transmission control (VGS) (N15/15) | With code G43 (9G-TRONIC) | 50 |
| A4 | Pre-fuse A4 (F1fA4) | 30 | 6.0 RD | Rear socket relay (K127) | With code ES3 (12V sockets for right and left rear seat rows), except code E28 (Additional battery for retrofitted consumers) | 50 |
| A5 | Pre-fuse A5 (F1fA5) | 30 | - | Not assigned | - | 60 |
| A6 | Pre-fuse A6 (F1fA6) | 30 | 35.0 RD | Firewall fuse and relay module (K40/11) | - | 250 |
| A7 | Pre-fuse A7 (F1fA7) | 30 | 16.0 RD | Engine compartment fuse and relay module (K40/10) | - | 150 |
| A8 | Pre-fuse A8 (F1fA8) | 30 | 16.0 RD | Fuse and relay module, front passenger footwell (K40/12) | - | 150 |
| A9 | Pre-fuse A9 (F1fA9) | 30 | - | Not assigned | - | - |
| A10 | Pre-fuse A10 (F1fA10) | 30 | 10.0 RD | Electric fan (M91) | Engine 274 with code G42 (7G-TRONIC PLUS) or with code G43 (9G-TRONIC), engine 622, 651 | 100 |
| A11 | Pre-fuse A11 (F1fA11) | 30 | 12.0 RD | Electric power steering (ES) control unit (N68) | - | 100 |
| A12 | Pre-fuse A12 (F1fA12) | 30 | 16.0 RD | Battery cutoff relay (K57) | with code E36 (Battery cutoff relay for additional battery) | 150 |
| A13 | Pre-fuse A13 (F1fA13) | 30 | 10.0 RD | Signal acquisition and actuation module (SAM) control unit (N10/1) via pre-fuse box circuit 30 end sleeve (Z4/6) | - | 40 |
| A14 | Pre-fuse A14 (F1fA14) | 30 | - | Not assigned | - | 40 |
| A15 | Pre-fuse A15 (F1fA15) | 30 | - | Not assigned | - | 40 |
| A16 | Pre-fuse A16 (F1fA16) | 30 | - | Not assigned | - | - |
| E1 | - | 30 | 50.0 BK | On-board electrical system battery (G1) | - | - |
| E2 | Pre-fuse E2 (F1fE2) | 30 | 85.0 BK | Alternator (G2) | - | 350 |
| P2 (Pin 1) | - | - | 0.5 PKYE | Supplemental Restraint System (SRS) control unit (N2/18) | - | - |
| P2 (Pin 2) | - | - | 0.5 GY | Supplemental Restraint System (SRS) control unit (N2/18) | - | - |
| Q2 (Pin 1) | - | Signal | 0.5 BKBU | Signal acquisition and actuation module (SAM) control unit (N10/1) | With CODE MJ8 (ECO start/stop function) | - |
| Q2 (Pin 2) | - | 31 | 0.5 BN | Right vehicle interior firewall ground point (W43/2) | With CODE MJ8 (ECO start/stop function) | - |
