Adjust Camber And Caster At The Front Axle - AR40.20-P-0263ME

Model 167

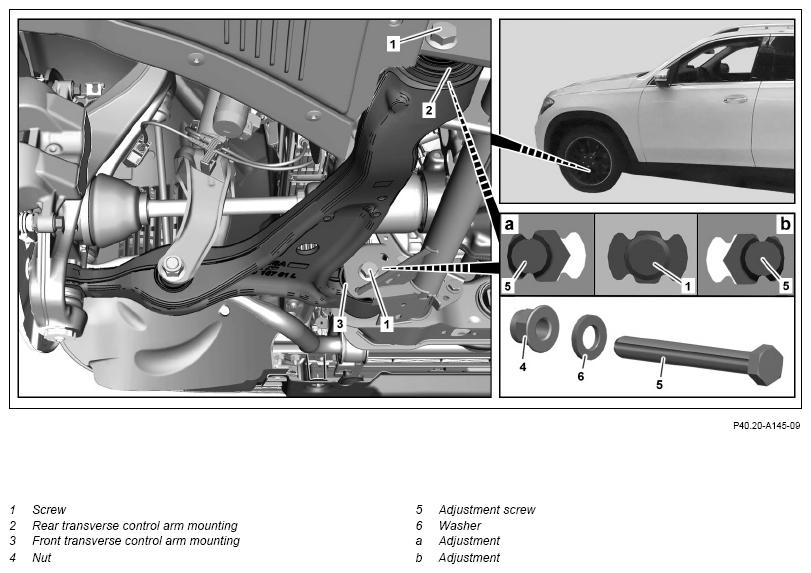

G14790908Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
MEASURING Measure
1 Carry out input measurement.   AR40.20-P-0200ME
2 Compare determined values with the specified values. Assign suspension data AR40.20-P-0203ME
REMOVING Remove
3 Remove center engine compartment lining and rear engine compartment lining.   AR61.20-P-1105ME
4 Remove heat shield at left or right by removing bolt (1) of rear transverse control arm mounting (2). Only for caster adjustment, if installed.
  Adjusting caster
5 Unfasten nut (4) on rear transverse control arm mounting (2).
6 Rock vehicle to settle suspension. If rear transverse control arm bearing (2) is jammed.
7 Replace bolt (1) on rear transverse control arm mounting (2) with adjustment screw (5) with washer (6), and press rear transverse control arm mounting (2) towards vehicle center or outside of vehicle while doing so. IMPORTANT Use adjustment screw (5) with washer (6) only.
    IMPORTANT The adjustment (a) at the rear of the lower transverse control arm towards the vehicle center causes a reduction in caster.
The adjustment (b) at the rear of the lower transverse control arm towards outside of the vehicle causes an increase in caster.

8 Tighten nut (4) on rear transverse control arm mounting (2). TORQUE SPECIFICATION Nut, lower transverse control arm to front axle carrier *BA33.20-P-1004-01W
  Adjust camber
9 Unfasten nut (4) on front transverse control arm mounting (3).
10 Rock vehicle to settle suspension. If front transverse control arm mounting (3) is jammed.
11 Replace bolt (1) on front transverse control arm mounting (3) with adjustment screw (5) with washer (6), and press front transverse control arm mounting (3) towards vehicle center or outside of vehicle while doing so. IMPORTANT Use adjustment screw (5) with washer (6) only.
    IMPORTANT The adjustment (a) at the front of the lower transverse control arm towards the vehicle center causes a positive camber change.
The adjustment (b) at the rear of the lower transverse control arm towards the outside of the vehicle causes a negative camber change

12 Tighten nut (4) on front transverse control arm mounting (3). TORQUE SPECIFICATION Nut, lower transverse control arm to front axle carrier *BA33.20-P-1004-01W
MEASURING Measure
13 Carry out output measurement.   AR40.20-P-0200ME
INSTALLING Install
14 Install heat shield at left or right by fitting bolt (1) of rear transverse control arm mounting (2). Only for caster adjustment, if installed.
15 Install center engine compartment lining and rear engine compartment lining.   AR61.20-P-1105ME
WHEEL CONTROL, HUB

Number Designation Model 167
BA33.20-P-1004-01W Nut, lower transverse control arm to front axle carrier Stage 1 Nm 100
Stage 2 ∠° 180
