Remove/Install Front Seat Frame Covers - AR91.10-P-1200ME

Model 167

Courtesy of MERCEDES-BENZ USA

Shown with CODE 275 (Electrically adjustable driver seat with memory function)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1.1	Remove front seat (1).	If trims (9, 10) are removed.	AR91.10-P-1000ME
1.2	Move front seat (1) at left or right to foremost and uppermost position.	If trims (2, 3, 6) are removed.

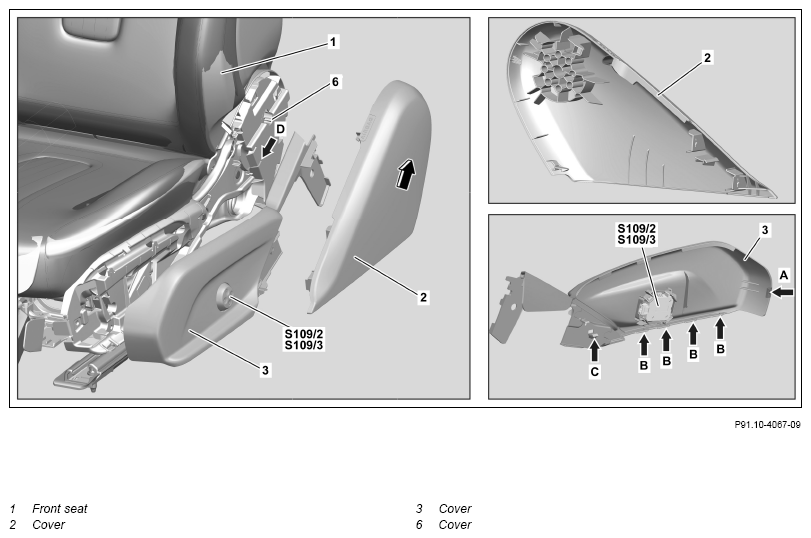

2	Unclip and remove trim (2) in direction of arrow.
3	Remove seat belt end fitting from front seat (1).	Model 167 except code 460 (Canada version) except code 494 (US version)	AR91.40-P-1030-02FR
		Model 167 with code 460 (Canada version) with code 494 (US version)	AR91.40-P-1030-02FRA
		Model 167 with code 460 (Canada version) with code 494 (US version) Screw, cover for seat belt end-fitting tensioner	*BA91.40-P-1012-01U
4	Unhook trim (3) at catch hook (arrow A), catch hooks (arrows B) and catch hooks (arrow C).
5	Release and remove trim (3) from lock (arrow D).	Model 167
		Model 167 with code 275 (Driver's seat, electrically adjustable with memory function) Model 167 with code U22 (Lumbar support adjustment)	AR91.25-P-1436ME

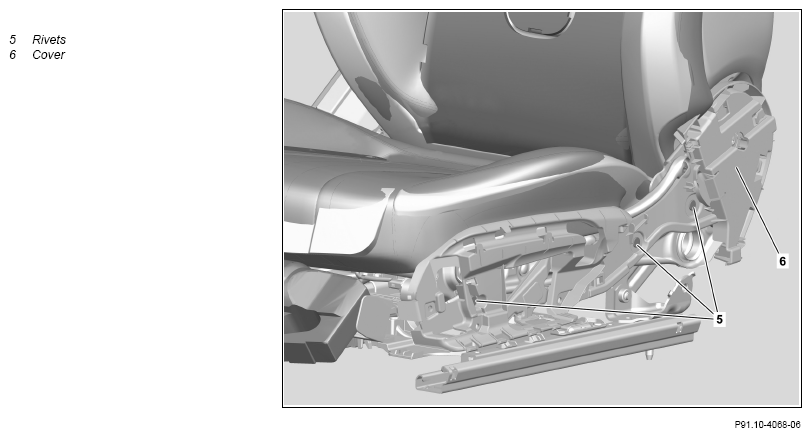

6	Drill out rivets (5).	Replace rivets (5).
7	Release trim (6) and remove.

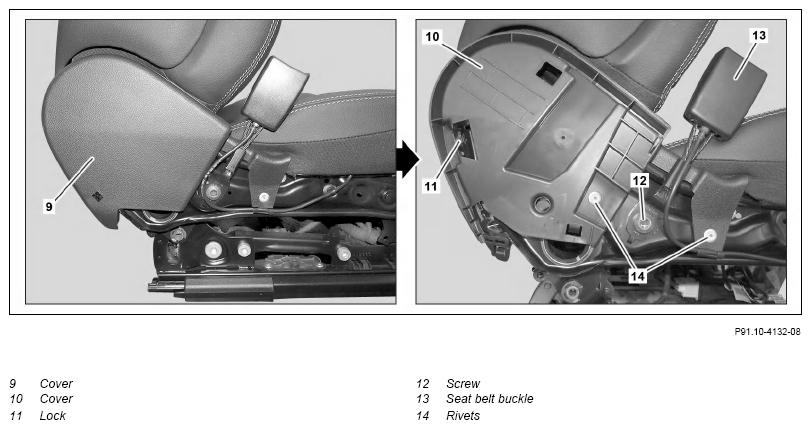

8	Unclip trim (9).	Long wedge	Fig 1
9	Unscrew screw (12) and place seat belt buckle (13) to one side.	Make sure that the seat belt buckle (13) is in the correct installation position. Bolt, front seat belt buckle	*BA91.40-P-1004-01U
10	Unhook electrical wiring harness of seat belt buckle (13) from trim (10).
11	Drill out rivets (14).	Replace rivets (14).
12	Release lock (11) and remove trim (10).
13	Install in the reverse order.
