Remove/Install Front Seat - AR91.10-P-1000ME

Model 167

MODIFICATION NOTES

22.07.2019

Operation step sequence changed.

Operation steps 2 to 10

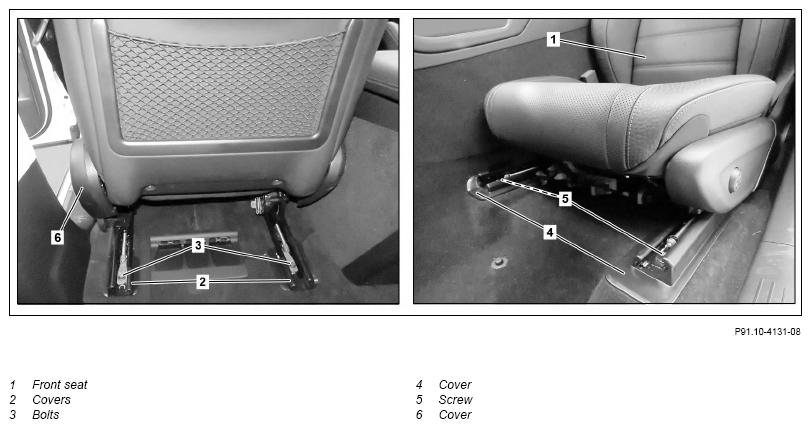

Fig 1: Front Seat Components Location - Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Move steering column forward and all the way up.	When removing the front seat (1) on the driver's side.
2	Move front seat (1) to the rear and all the way down.
3	Remove bolts (5).	Bolt, front seat to vehicle floor	*BA91.10-P-1001-01T
4	Remove covers (4).
5	Move front seat (1) forward and all the way up.
6	Unclip trim (6) towards rear and remove.		AR91.10-P-1200ME
7	Remove bolts (3) from guide rails.	Bolt, front seat to vehicle floor	*BA91.10-P-1001-01T
8	Remove covers (2).
9	Disconnect the ground line for the on-board electrical system battery (G1).		AR54.10-P-0003ME
10	Remove seat belt end fitting.	Model 167 with code 460 (Canada version) Model 167 with code 494 (US version)	AR91.40-P-1030-02FRA
		Model 167 except code 460 (Canada version) except code 494 (US version)	AR91.40-P-1030-02FR
		Model 167 with code 460 (Canada version) Model 167 with code 494 (US version) Screw, cover for seat belt end-fitting tensioner	*BA91.40-P-1012-01U
11	Tilt back front seat (1).	Ensure that lock pins of guide rails in vehicle floor are seated correctly.
12	Release and disconnect electrical connectors and pneumatic lines from the underside of the front seat (1).	The number of electric lines and connector couplings varies depending on the vehicle equipment involved.
13	Cover up center console, door sill and door sill.
	000 588 08 98 00 Cover		WS98.00-P-0014B
14	Remove front seat (1) from vehicle.	Carefully remove front seat (1) from vehicle. Otherwise, vehicle component parts may become damaged. Aid of helper required.
15	Put down front seat (1) and secure it against falling over.
16	Install in the reverse order.

FRONT SEATS

Number	Designation		Model 167
BA91.10-P-1001-01T	Bolt, front seat to vehicle floor	Nm	50

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 167
BA91.40-P-1012-01U	Screw, cover for seat belt end-fitting tensioner	Nm	4
