Check All Visible Parts In Engine Compartment For Damage And Fluid Loss - AP00.20-P-0055H
Model 167

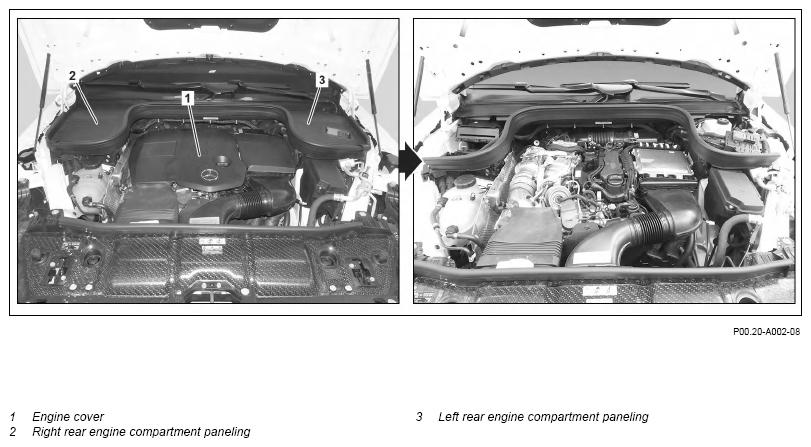

Shown on engine 654 in model 167.119
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. | AS20.40-Z-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on evaluating leakages | AH00.00-P-0011-01KOA | ||
| Remove | |||
| 1 | Remove left rear engine compartment trim (3). | ||
| 2 | Remove right rear engine compartment trim (2). | ||
| 3 | Remove engine cover (1). | Model 167 with engine 176, 177, 256, 264, 274, 654, 656 Model 167 with engine 176 |
AP01.10-P-2405-01M |
| Model 167 with engine 177 | AP01.10-P-2405-01E | ||
| Model 167 with engine 256.9 | AP01.10-P-2405-01F | ||
| Model 167 with engine 264 | AP01.10-P-2405-01I | ||
| Model 167 with engine 274 | AP01.10-P-2405-01O | ||
| Model 167 with engine 654 | AR01.10-P-2405OLM | ||
| Model 167 with engine 656 | AR01.10-P-2405OID | ||
| Check | |||
| 4 | Check visible systems and component parts in the engine compartment for condition, fluid loss and mounting. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system, Electrical components. If problems are determined, ↓ rectify the problems. |
|
| 5 | Check visible systems and component parts in the engine compartment for condition, fluid loss and mounting. | Equipment-dependent. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 Hybrid components, Stationary heater. If problems are determined, ↓ rectify the problems. |
|
| 6 | Check visible lines and hoses in engine compartment for good condition, fluid loss, correct routing and secure attachment. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system, Electrical components. If problems are determined, ↓ rectify the problems. |
|
| 7 | Check visible lines and hoses in engine compartment for good condition, fluid loss, correct routing and secure attachment. | Equipment-dependent. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 Hybrid components, Stationary heater. If problems are determined, ↓ rectify the problems. |
|
| 8 | Check visible systems, component parts and body panels, lines and hoses in the engine compartment on vehicle underside for damage, routing, fluid loss, mounting and corrosion. | AP00.20-P-0054L | |
| Install | |||
| 9 | Install engine cover (1). | Model 167 with engine 176, 177, 256, 264, 274, 654, 656 Model 167 with engine 176 |
AP01.10-P-2405-01M |
| Model 167 with engine 177 | AP01.10-P-2405-01E | ||
| Model 167 with engine 256.9 | AP01.10-P-2405-01F | ||
| Model 167 with engine 264 | AP01.10-P-2405-01I | ||
| Model 167 with engine 274 | AP01.10-P-2405-01O | ||
| Model 167 with engine 654 | AR01.10-P-2405OLM | ||
| Model 167 with engine 656 | AR01.10-P-2405OID | ||
| 10 | Install right rear engine compartment trim (2). | ||
| 11 | Install left rear engine compartment trim (3). |
