Remove/Install Rear Engine Support - AR22.10-P-4360MNO

Engine 176 in model 167

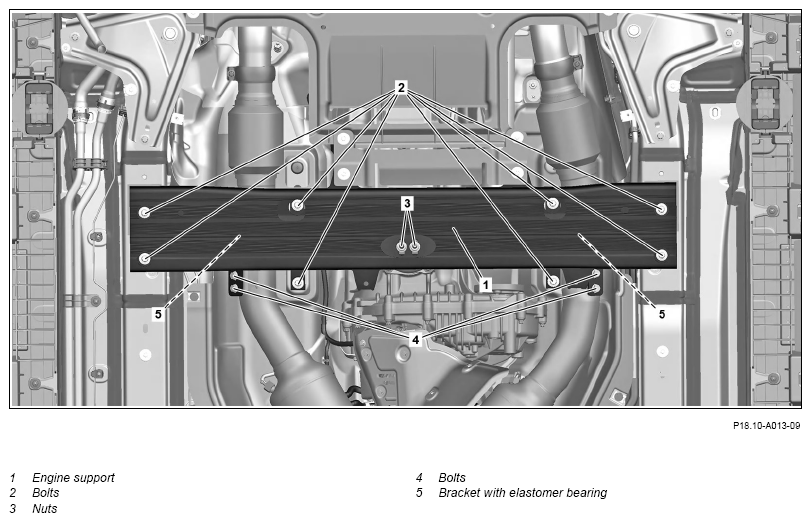

Fig 1: Rear Engine Support Components Location - Engine 176 In Model 167

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove side underfloor paneling.		AR61.30-P-1001ME
2	Support the automatic transmission.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
3	Remove nuts (3).	Replace nuts (3).
		Bolt/nut, rear engine mount to rear engine crossmember	*BA22.10-P-1004-03G
4	Remove screws/bolts (4).	Bolt, center exhaust system to holder for elastomer bearing	*BA49.10-P-1007-02W
5	Unscrew screws (2) and remove rear engine support (1) downwards.	Under no circumstances should an impact wrench/driver or pneumatic tools be used to remove or screw in the screws (2). Otherwise the threads can get damaged. Replace screw/bolts (2).
		Bolt, rear engine crossmember to body	*BA22.10-P-1005-03G
6	Remove brackets with the elastomer bearings (5) from the engine carrier (1).	If a new engine carrier (1) is installed.
		Nut, holder for elastomer bearing to elastomer bearing	*BA49.10-P-1008-02W
7	Install in the reverse order.

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 167
BA22.10-P-1004-03G	Bolt/nut, rear engine mount to rear engine crossmember	Nm	50

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 167
BA22.10-P-1005-03G	Bolt, rear engine crossmember to body	Nm	50

EXHAUST SYSTEM

Number	Designation			Model 167 with engine 176
BA49.10-P-1007-02W	Bolt, center exhaust system to holder for elastomer bearing	M8	Nm	20

EXHAUST SYSTEM

Number	Designation			Model 167 with engine 176
BA49.10-P-1008-02W	Nut, holder for elastomer bearing to elastomer bearing	M8	Nm	23
