Underbody Paneling Remove And Install - Ar61.30-P-1001ME

Model 167

Courtesy of MERCEDES-BENZ USA

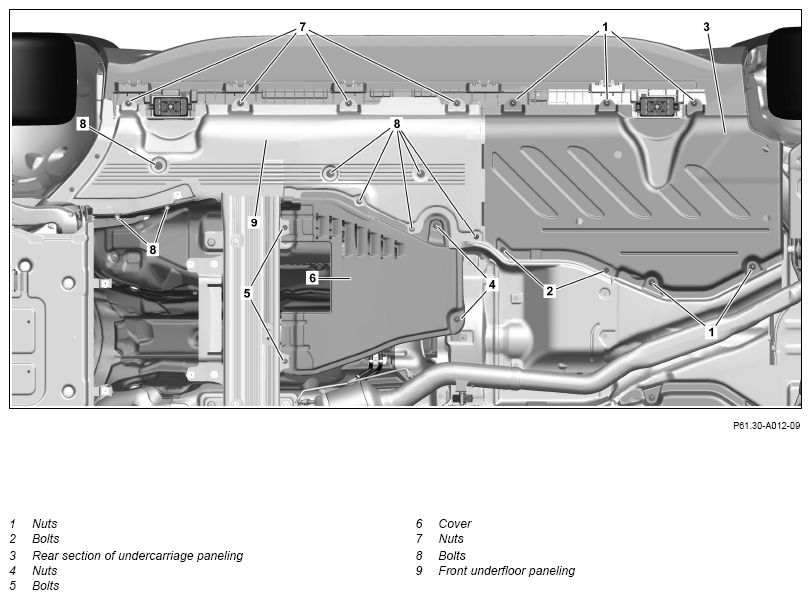

Shown on left side of vehicle in model 167 with engine 264 and code 9U7 (Aerodynamics measures package control code), except code 430 (Offroad package)

	Remove/install
1	Remove side running board.	Model 167.9 with code M036 (Maybach version)	AR88.30-P-2400ME
2	Lift vehicle with lifting platform.		AR00.60-P-1006A
3	Detach fender liner in rear fender in front area		AR88.10-P-1302ME
4	Remove nuts (1).
5	Remove screws (2) and remove rear underfloor paneling (3).
6	Remove nuts (4).	Model 167 with engine 256, 264, 274, 654, 656 with code 9U7 (Aerodynamic measure package control code) except code 430 (Offroad package)
7	Remove screws (5) and remove cover (6).	Model 167 with engine 256, 264, 274, 654, 656 with code 9U7 (Aerodynamic measure package control code) except code 430 (Offroad package)
8	Remove engine compartment lining at rear.		AR61.20-P-1105ME
9	Detach rear section of fender liner in front fender in working area.		AR88.10-P-1301ME
10	Remove nuts (7).
11	Remove screws (8) and remove front underfloor paneling (9).
12	Install in the reverse order.
