Remove/Install Front Axle Differential Propeller Shaft - AR41.10-P-0070MSC
Model 167 with engine 176, 177, 256.9, 264, 274
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Remove rear engine crossmember. | Model 167 with engine 177 | AR22.10-P-4360MNP |
| Model 167 with engine 264 | AR22.10-P-4360MRK | ||
| Model 167 with engine 274.9 | |||
| Model 167 with engine 256.9 | AR22.10-P-4360MSC | ||
| Model 167 with engine 176 | AR22.10-P-4360MNO | ||
| 2 | Mark position of propeller shaft (3) relative flange (3f) of front axle differential and to flange of transfer case. | ||
| 3 | Remove propeller shaft (3) from front axle differential and transfer case. | Tightening procedure for front propeller shaft | AR41.10-P-0070-03OID |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
Observe tightening procedure. Otherwise vibrations and noise can occur. |
|||
| *BA41.10-P-1003-01F | |||
| *BA41.10-P-1004-01F | |||

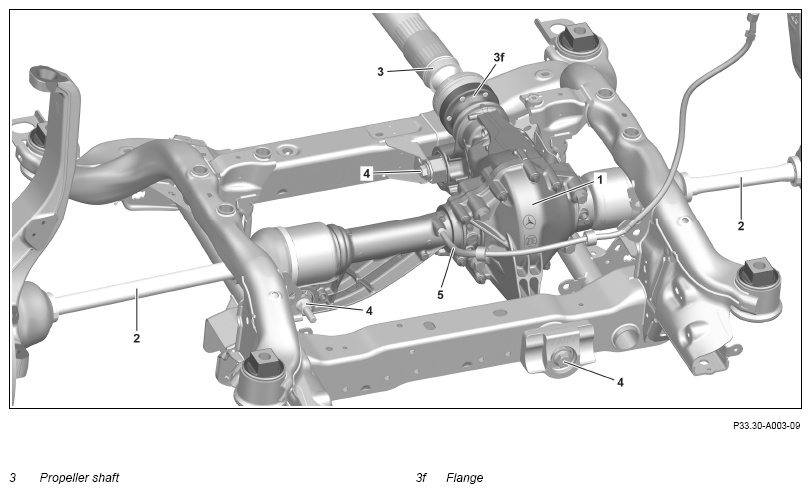

| Fig 1 | |||
| 4 | Remove propeller shaft (3) in downward direction. | ||
| Check | |||
| 5 | Check ball joints and boots of propeller shaft (3). | ||
| 6 | Install in the reverse order. |
PROPELLER SHAFT
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA41.10-P-1003-01F | Self-locking bolt, drive shaft to transfer case (to front axle) | Stage 1 | Nm | 40 |
| Stage 2 | ∠° | 90 | ||
PROPELLER SHAFT
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA41.10-P-1004-01F | Self-locking bolt, drive shaft to front axle gear | Stage 1 | Nm | 40 |
| Stage 2 | ∠° | 90 | ||
