C-Pillar Removal And Installation - Ar63.20-P-0500ME
Model 167

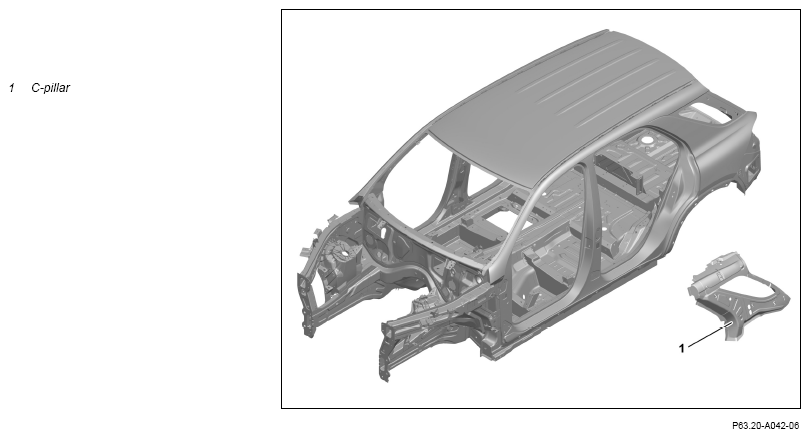

Shown on model 167.1 on left side of vehicle
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | |
| Notes on foam-protected insulation in body | AH60.00-P-0041-01A | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with spark protection blankets. | ||
| 3 | Remove rear fender. | Model 167.1 | AR63.50-P-1401ME |
| Model 167.9 | AR63.50-P-1401MEX | ||
| Model 167.3 | AR63.50-P-1401MEC | ||
| 4 | Remove C-pillar (1). | Model 167.1 | AR63.20-P-0500-01ME |
| Model 167.9 | AR63.20-P-0500-01MEX | ||
| Model 167.3 | AR63.20-P-0500-01MEC | ||
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| General information on riveting | AH60.00-P-0003-01N | ||
| 5 | Prepare C-pillar (1) for installation. | Model 167.1 | AR63.20-P-0500-02ME |
| Model 167.9 | AR63.20-P-0500-02MEX | ||
| Model 167.3 | AR63.20-P-0500-02MEC | ||
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| 6 | Install C-pillar (1). | Model 167.1 | AR63.20-P-0500-03ME |
| Model 167.9 | AR63.20-P-0500-03MEX | ||
| Model 167.3 | AR63.20-P-0500-03MEC | ||
| White sealing compound, 310 ml, DBL 6069.20 | *BR00.45-Z-1003-01A | ||
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1035-13A | ||
| Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1012-13A | ||
| 7 | Clean weld joints and sheet metal flange. | ||
| 8 | Install rear fender. | Model 167.1 | AR63.50-P-1401ME |
| Model 167.9 | AR63.50-P-1401MEX | ||
| Model 167.3 | AR63.50-P-1401MEC | ||
| 9 | Reinstall detachable parts in area of repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1012-13A | Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | A 004 990 16 97 |
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
