Remove/Install Head-Up Display - AR54.30-P-6400ME
Model 167
With Code 463 (Head-up display)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of Head-up Display (A40/12). | If the Head-up Display (A40/12) is replaced. | |
| AD00.00-P-2000-06ME | |||
| 2 | Remove instrument panel. | AR68.10-P-1000ME | |
| 3 | Remove insulation of Head-up Display (A40/12). | ||

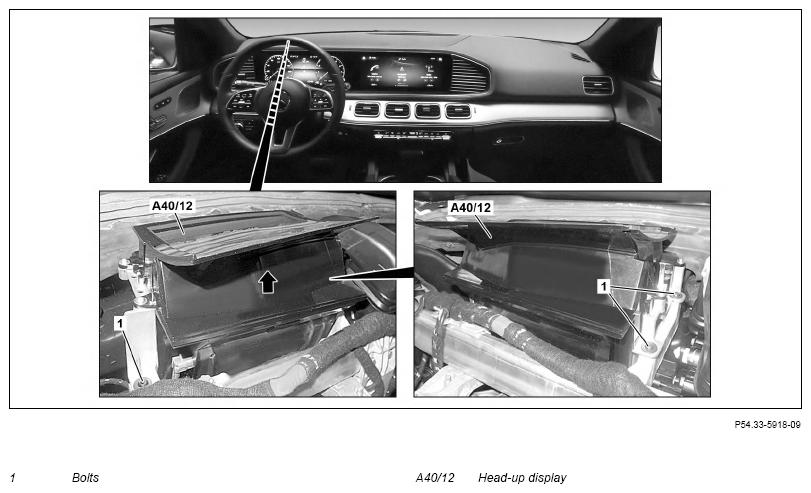

| 4 | Unscrew screw/bolts (1). | ||
| 5 | Lift Head-up Display (A40/12) far enough until the electrical connectors are accessible. | ||
| 6 | Release, disconnect electrical connectors and remove Head-up Display (A40/12). | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check Head-up Display (A40/12), and adjust if necessary. | AR54.30-P-6401ME |
