Remove/Install Rear Central Control Unit - AR54.21-P-1273ME
Model 167
MODIFICATION NOTES
| 10.09.2019 | "Remove service flap", added. | Operation step 2.1 |
Shown on model 167.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of rear central control unit (N10/8). | If the rear central control unit (N10/8) is replaced. | |
| AD00.00-P-2000-06ME | |||
| 2.1 | Remove service flap in right load compartment trim. | Model 167.9 except code M036 (Maybach version) | |
| 2.2 | Remove right load compartment cover. | Model 167.1/3 Model 167.9 with code M036 (Maybach version) |
|
| Model 167.1 | AR68.30-P-4800ME | ||
| Model 167.3 | AR68.30-P-1185MEC | ||
| Model 167.9 with code M036 (Maybach version) | AR68.30-P-1185MEM | ||
| 3 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

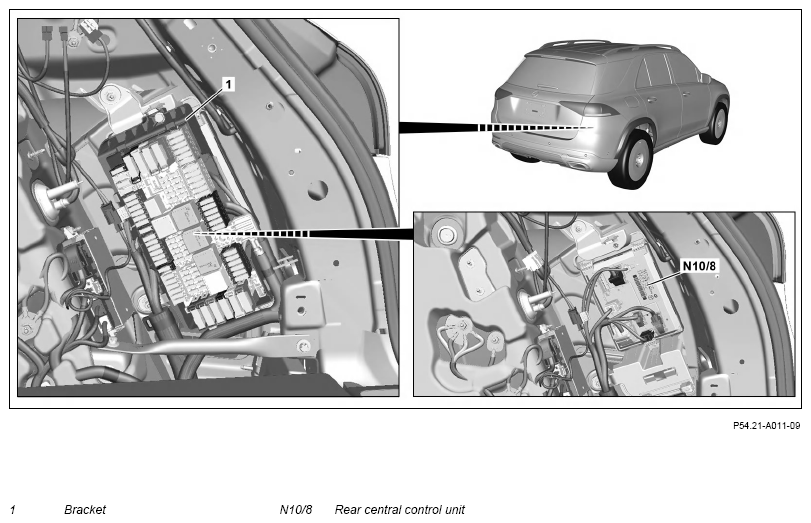

| 4 | Remove holder (1) with rear fuse and relay module and place to one side with connected lines. | AR54.15-P-0001ME | |
| 5 | Release and disconnect electrical connectors from rear central control unit (N10/8). | ||
| 6 | Unclip rear central control unit (N10/8) and remove. | ||
| 7 | Install in the reverse order. |
