Overview Of System Components, Automatically Controlled All-Wheel Drive (4Matic) - GF28.00-P-9998AVO
Model 257.361, 290
up to model year 2021

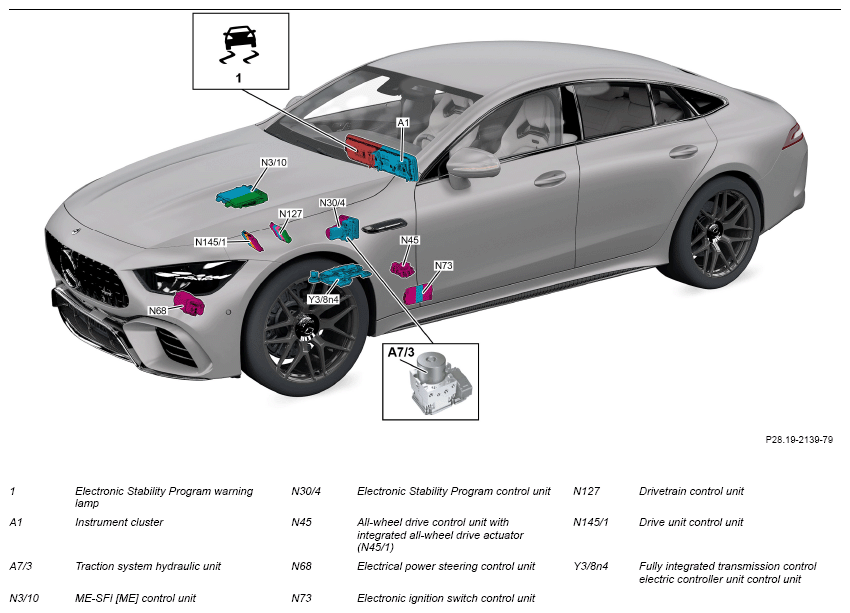

View of model 290
View of transfer case
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Component description for ME-SFI (ME) control unit | Model 290 with engine 177.9 up to model year 2021 | GF07.61-P-6000MNL | |
| N3/10 | |||
| Model 257.361, 290 with engine 256.9 up to model year 2021 | GF07.61-P-6000MRT | ||
| N3/10 | |||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| All-wheel drive control unit, component description | N45 | GF28.19-P-3211AVO | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Drivetrain control unit, component description | Model 257.361, 290 with engine 256.9 up to model year 2021 | GF54.21-P-2141LF | |
| N127 | |||
| Drive unit control unit component description | N145/1 | GF27.60-P-5168FR | |
| Fully integrated transmission control electric controller unit control unit, component description | Model 290 with transmission 725.096 up to model year 2021 | GF27.60-P-5120ANS | |
| Y38n4 | |||
| Fully integrated transmission control electric controller unit control unit, component description | Model 257.361, 290 with transmission 725.0 (except 725.096) up to model year 2021 | GF27.60-P-5120ANR | |
| Y38n4 | |||
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVO |
