Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind - AR77.21-P-0230FRX
Model 290 with code 416 (Panoramic sunroof)
| Remove/install | |||
| 1 | Remove panoramic front roller sunblind. | AR77.21-P-0200FRX | |

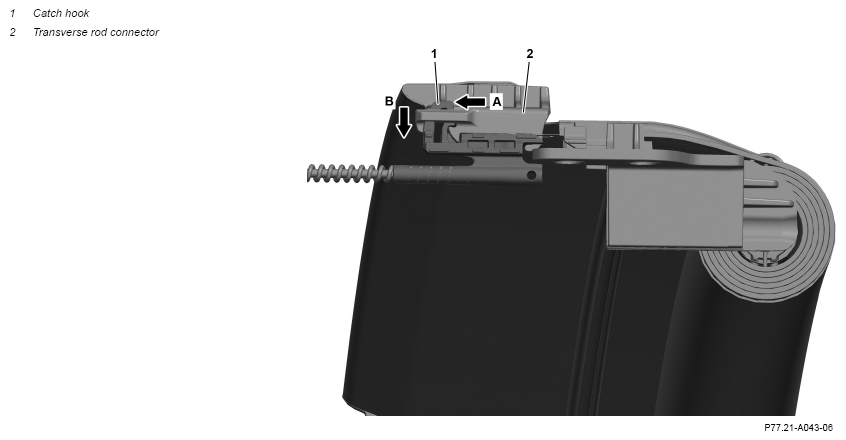

| 2 | Press catch hook (1) with a suitable screwdriver toward the front (arrow A) and unhook from the transverse rod coupling (2) (arrow B). | Ensure that the catch hook (1) is seated correctly in the transverse rod coupling (2). Otherwise, the function of the panoramic roof roller sunblind is not ensured. |
|
| 3 | Remove drive cable of the panoramic roof roller sunblind. | ||
| 4 | Install in the reverse order. |
