Remove/Install TV Antenna Amplifier 1 - AR82.62-P-8313FRX
Model 290 with code 865 (digital TV)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove upper right liftgate trim. | AR72.20-P-6631FRX | |

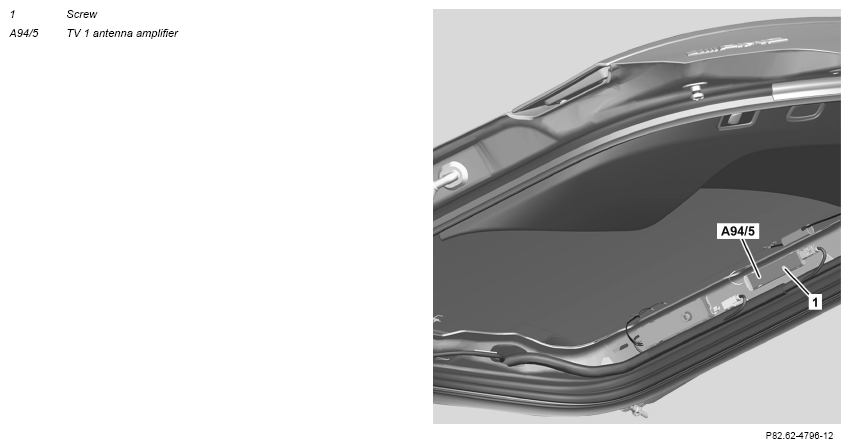

| 2 | Disconnect electrical connectors at TV 1 antenna amplifier (A94/5). | ||
| 3 | Unscrew bolt (1). | ||
| 4 | Unclip TV 1 antenna amplifier (A94/5) from liftgate and remove. | ||
| 5 | Install in the reverse order. |
