Remove/Install Additional Brake Lamp - AR82.10-P-5376FRX

Model 290

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove upper center liftgate trim.		AR72.20-P-6631FRX
		Do not remove upper left, top right and bottom liftgate trim.
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).

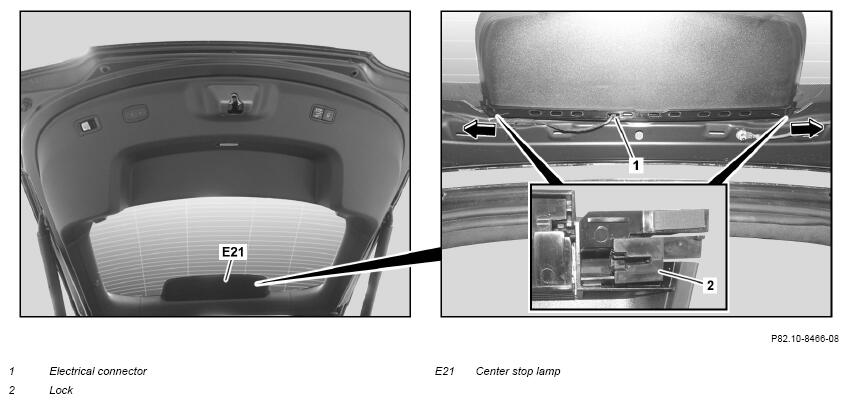

3	Disconnect electrical connector (1).
4	Release locks (2) (arrows) and remove center brake lamp (E21).
5	Install in the reverse order.
