Retrofit CD Drive - AZ82.64-P-0002RXO

Model 290

as of model year 2020

with code 531 (COMAND APS)

except code 320 (Single CD drive preinstallation)

except code 460 (Canada version)

except code 494 (US version)

except code 498 (Japanese version)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A

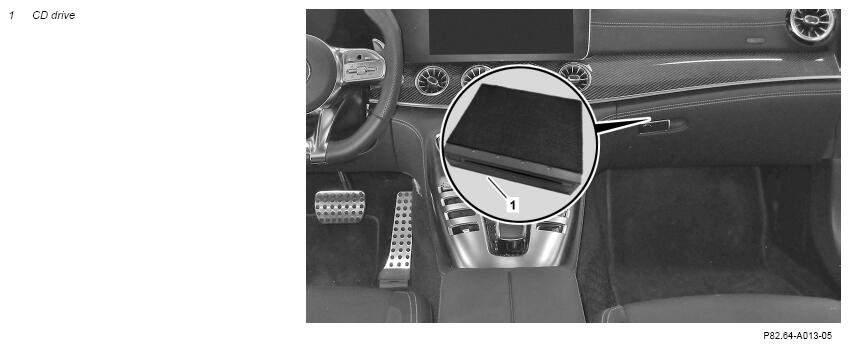

	Remove
1	Remove fragrance system alternator.
		Model 290 with code P21 (Air Quality Package)	AR83.40-P-0201FR
2	Remove glove box.
			AR68.10-P-1402FR
3	Detach head unit and place to one side with lines still connected.
			AR82.85-P-1101FR
4	Remove Audio/COMAND display.
			AR82.85-P-7429FR
5	Remove trim at bottom for instrument panel on driver's side.
			AR68.10-P-1501FR
6	Release fuse and relay module on driver's side.
			AR54.15-P-0003FR
	Install
7	Produce drilling template for holder of CD drive (1).	Model 290.### 1#	AZ82.64-P-0002-04LWE
		Model 290.### 2#	AZ82.64-P-0002-04LWR
8	Produce adhesive film cutting template for CD drive (1).		AZ82.64-P-0002-05LWE
9	Cut adhesive film to size using cutting template.
10	Prepare glove compartment housing for installation of CD drive (1).	Model 290.### 1#	AZ82.64-P-0002-08LWE
		Model 290.### 2#	AZ82.64-P-0002-08LWR
11	Prepare holder for CD drive (1) for installation.		AZ82.64-P-0002-06LWE
12	Retrofit wiring harness for CD drive (1).		AZ82.64-P-0002-01RX
Notice	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
	Assignment of driver-side fuse and relay module		GF54.15-P-1256-49FR
		The wiring diagram documentation for this model series is available in the DWD (Dynamic Wiring Diagram). https: //ws-retailfactory-dyna.mercedes-benz.com/start-aspu/
		Left footwell ground point	*BA00.19-P-1021-02D
13	Retrofit CD drive (1) in glove compartment housing.		AZ82.64-P-0002-03LWE
14	Install glove compartment housing with CD drive (1).
			AR68.10-P-1402FR
		Pay attention to installation of lines.
15	Insert a fuse with a fuse rating of 5 A into slot 207 of driver's side fuse and relay module.
	Assignment of driver-side fuse and relay module		GF54.15-P-1256-49FR
16	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
17	Enter special equipment into on-line vehicle data card.	Code 320 (Single CD drive pre-installation).
18	Attach note "CD drive retrofitted as per AZ82.64-P-0002RXO" and "USB port in rear passenger compartment decommissioned" under field organization texts to DG 82 and DG 54.
19	Connect diagnostic system and select vehicle using vehicle identification number (VIN).
			AD00.00-P-2000-06FR
20	Perform variant coding using the software calibration number (SCN).	Head unit.
21	Disconnect diagnostic system.
			AD00.00-P-2000-06FR
	Check
22	Perform function test.	See Owner's Manual.
