Remove/Install Upper Control Panel Control Unit - AR54.21-P-1262FRX

Model 290

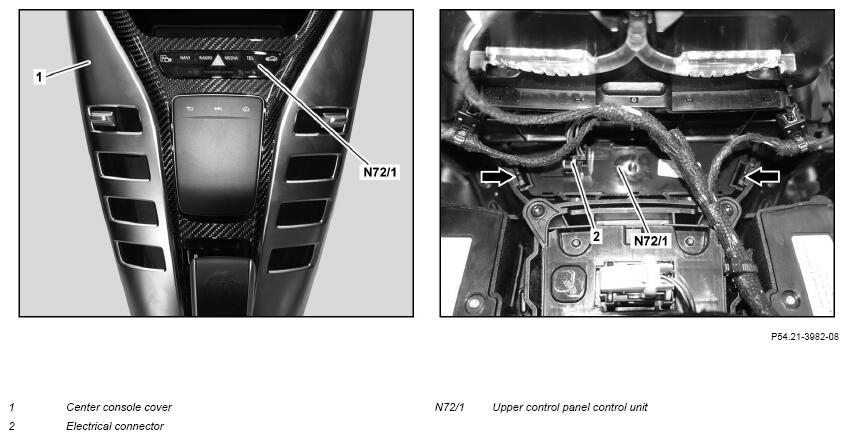

Fig 1: Upper Control Panel Control Unit Components Location - Model 290

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove center console cover (1).		AR68.20-P-2350FRX
2	Disconnect electrical connection (2).
3	Unclip upper control panel control unit (N72/1) (arrows) and remove.
4	Install in the reverse order.
