Remove/Install Lower Control Panel - AR54.25-P-0005FRX
Model 290
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

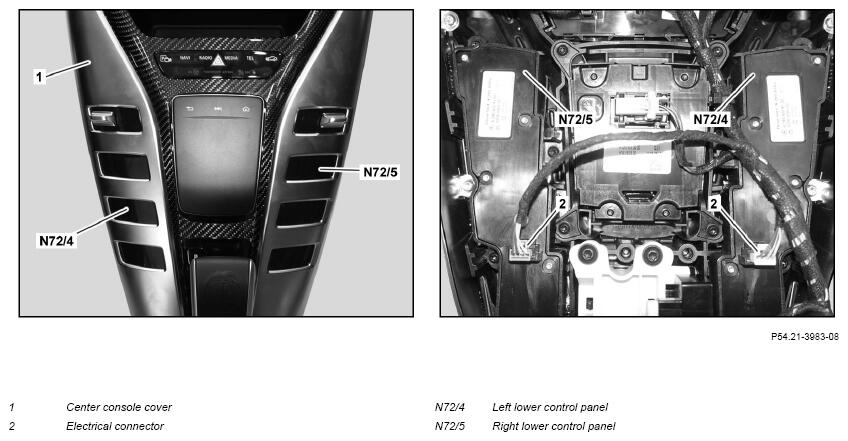

| 1 | Remove center console cover (1). | AR68.20-P-2350FRX | |
| 2 | Disconnect electrical connection (2). | ||
| 3 | Remove bolts from lower control panel (N72/4, N72/5). | ||
| 4 | Remove lower control panel (N72/4, N72/5). | ||
| 5 | Install in the reverse order. |
