Remove/Install Instrument Panel Button Group On Driver's Side - AR54.25-P-1004FR

Model 257 with engine 256

with code 540 (Electric roller blind for rear window)

Model 257

with code 235 (Parking Pilot with PARKTRONIC)

Model 257

with code 23P (Drive package)

Model 257

with code 243 (Active Lane Keeping Assist (camera))

Model 257

with code 463 (Head-up display)

Model 257

with code 489 (AIR BODY CONTROL)

Model 257

with code P20 (Driving assistant package Plus)

Model 290

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove driver-side trim element (1).		AR68.10-P-1186FR

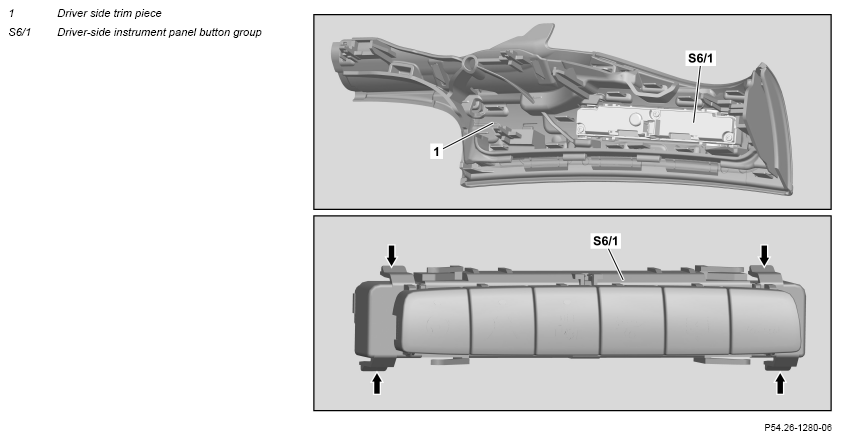

2	Press catch hooks (arrows) together and remove driver-side instrument panel button group (S6/1).	Check catch hooks (arrows) are correctly seated.
3	Install in the reverse order.
