Remove/Install Trim Piece On Driver Side Instrument Panel - AR68.10-P-1186FR
Model 257, 290
Shown on model 257.### 1# with code 891 (Premium ambient lighting) and with code 23P (Driving Assistance Package)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove display module and place to one side with connected electric lines. | AR54.30-P-6023FR | |
| 2 | Release edge guard in the area of the cover (1). | ||

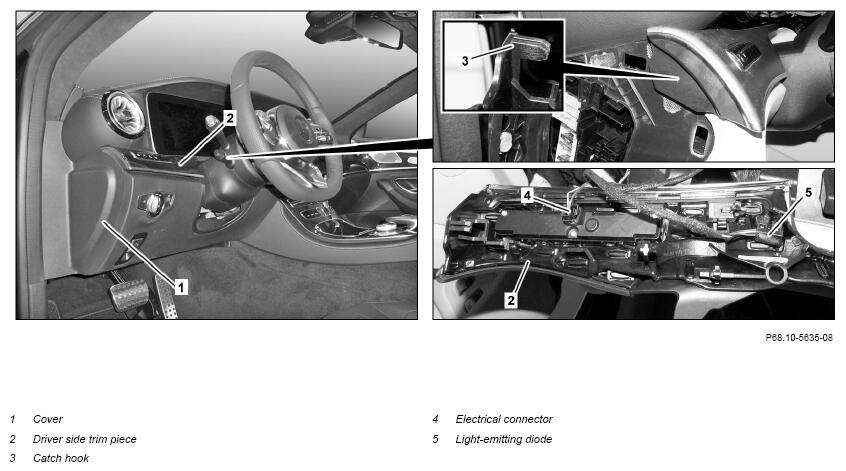

| 3 | Remove cover (1). | Fig 1 | |
| 4 | Unclip driver's side trim piece (2). | ||
| Fig 1 | |||
| 5 | Push driver's side trim piece (2) toward the outside and turn it over. | ||
| 6 | Disconnect light-emitting diode (5) from fiberoptic cable. | Model 257, 290 with code 891 (Premium ambiance illumination) |
|
| 7 | Disconnect electrical connection (4). | Model 257 with engine 256 with code 540 (Electric sunblind for rear window) Model 257 with code 235 (Active Parking Assist with PARKTRONIC) Model 257 with code 23P (Driving Assistance package) Model 257 with code 243 (Active lane keeping Assist) Model 257 with code 463 (Head-up display) Model 257 with code 489 (AIR BODY CONTROL) Model 257 with code P20 (Driving Assistance package Plus) Model 290 |
|
| 8 | Remove driver's side trim piece (2). | ||
| 9 | Remove driver's side instrument panel button group. | When replacing driver's side trim element (2). | |
| Model 257 with engine 256 with code 540 (Electric sunblind for rear window) Model 257 with code 235 (Parking Pilot with PARKTRONIC) Model 257 with code 23P (Driving Assistance package) Model 257 with code 243 (Active lane keeping Assist) Model 257 with code 463 (Head-up display) Model 257 with code 489 (AIR BODY CONTROL) Model 257 with code P20 (Driving Assistance package Plus) Model 290 |
AR54.25-P-1004FR | ||
| 10 | Install in the reverse order. |
