Remove/Install Audio/COMAND Control Panel - AR54.21-P-0504FRX
Model 190
as of model year 2019
except code 446 (Touchpad only)
Model 290
except code 446 (Touchpad only)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission Audio/COMAND control panel (A40/9). | When replacing the Audio/COMAND control panel (A40/9). | |
| Model 290 except code 446 (Touchpad only) |
AD00.00-P-2000-06FR | ||
| Model 190 as of model year 2019 except code 446 (Touchpad only) |
AD00.00-P-2000-04B | ||

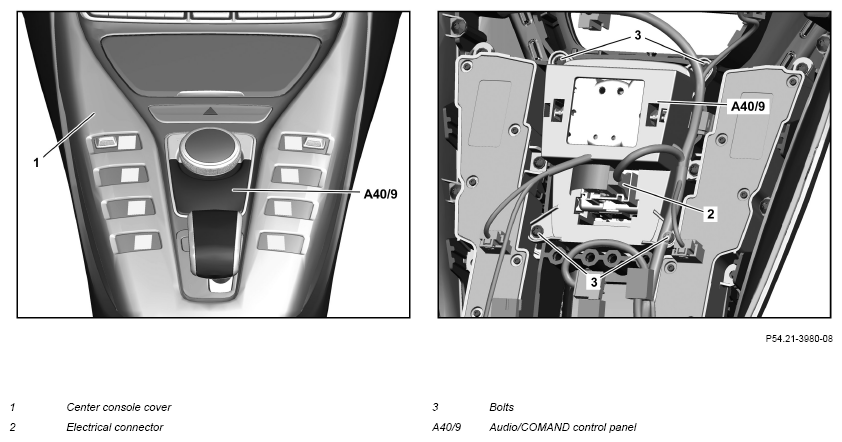

| 2 | Remove center console cover (1). | Model 290 except code 446 (Touchpad only) |
AR68.20-P-2350FRX |
| Model 190 as of model year 2019 except code 446 (Touchpad only) |
AR68.20-P-2350RG | ||
| 3 | Disconnect electrical connection (2). | ||
| 4 | Unscrew bolts (3). | ||
| 5 | Remove Audio/COMAND control panel (A40/9). | ||
| 6 | Install in the reverse order. |
