Remove/Install Air Suspension Compressor Holder - AR32.22-P-2009FRX

Model 290

with code 489 (AIR BODY CONTROL)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA

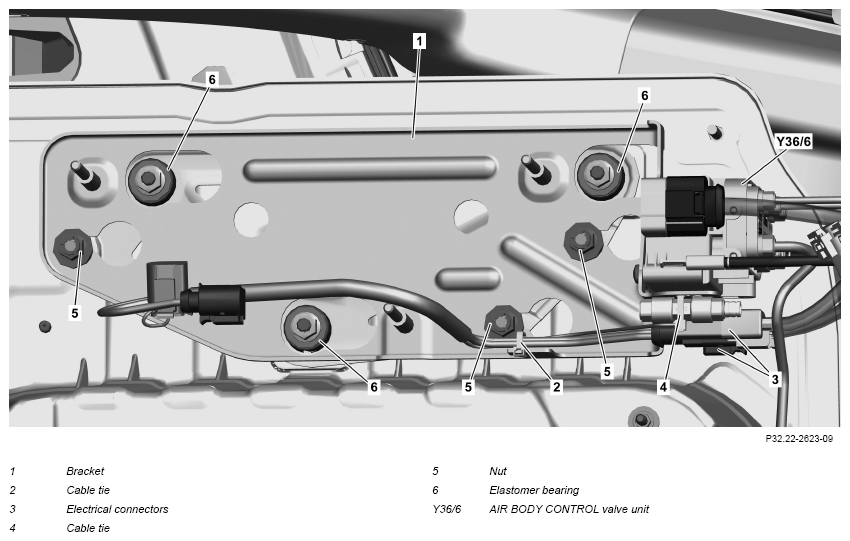

	Remove/install
1	Remove AIR BODY CONTROL compressor.		AR32.22-P-2001FRX
2	Separate cable tie (2).	: Replace cable tie (2).
3	Remove AIR BODY CONTROL valve unit (Y36/6) with connected lines from holder (1) and fix in place on vehicle.		AR32.22-P-2015FRX
4	Unclip electrical connectors (3) from holder (1).
5	Detach cable ties (4).	: Install new cable tie (4).
6	Unscrew nuts (5) and remove holder (1).	Nut, compressor unit holder to body	*BA32.22-P-1002-03J
7	Remove elastomer bearings (6).	When replacing bracket (1).
	Check
8	Check elastomer bearings (6) for hardening and damage.	In the event of a problem, ↓ Replace the elastomer bearings (6).
9	Install in the reverse order.

AIR SUSPENSION

Number	Designation		Model 290
BA32.22-P-1002-03J	Nut, compressor unit holder to body	Nm	20
