Remove/Install Air Body Control Control Unit - AR32.22-P-0006FRX
Model 290
with code 489 (AIR BODY CONTROL)
Shown with code 811 (Advanced sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of AIR BODY CONTROL control unit (N51/3). | When replacing AIR BODY CONTROL control unit (N51/3). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove side trim in left load compartment. | AR68.30-P-1185FRX | |

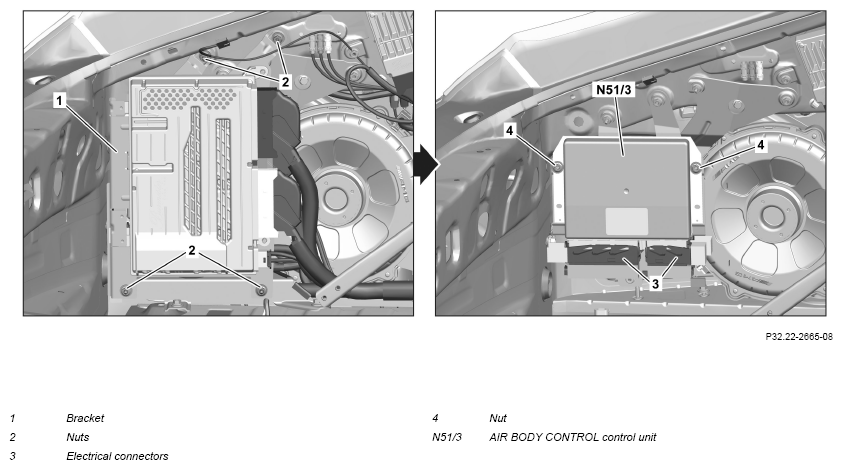

| 4 | Unscrew nuts (2) and set aside holder (1) in load compartment with control units attached. | Model 290 with code 489 (AIR BODY CONTROL) with code 810 (Sound system) Model 290 with code 489 (AIR BODY CONTROL) with code 811 (Advanced sound system) |
|
| 5 | Disconnect electrical connection (3). | ||
| 6 | Unscrew nuts (4) and remove AIR BODY CONTROL control unit (N51/3). | ||
| 7 | Remove AIR BODY CONTROL control unit (N51/3) from carrier plate. | When replacing AIR BODY CONTROL control unit (N51/3). | |
| 8 | Install in the reverse order. |
