Remove/Install Rear Body Acceleration Sensor - AR32.22-P-0005FRX
Model 290
with code 459 (Steel suspension with adjustable damping)
Model 290
with code 489 (AIR BODY CONTROL)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove side trim in left load compartment. | AR68.30-P-1185FRX | |

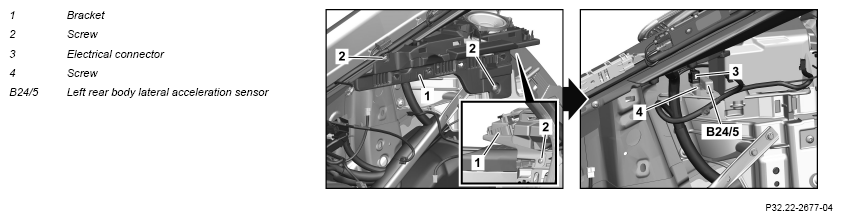

| 3 | Unscrew bolts (2). | ||
| 4 | Remove holder (1) with electric lines connected and place to one side. | ||
| 5 | Disconnect electrical connector (3). | ||
| 6 | Unscrew screw (4). | ||
| 7 | Remove left rear body acceleration sensor (B24/5). | ||
| 8 | Install in the reverse order. |
