Remove/Install Adaptive Damping System Control Unit - AR32.32-P-0003FRX
Model 290
with code 459 (Steel suspension with adjustable damping)
Shown with code 811 (Advanced sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission adaptive damping system control unit (N51/5). | When replacing the adaptive damping system control unit (N51/5). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove side trim in left load compartment. | AR68.30-P-1185FRX | |

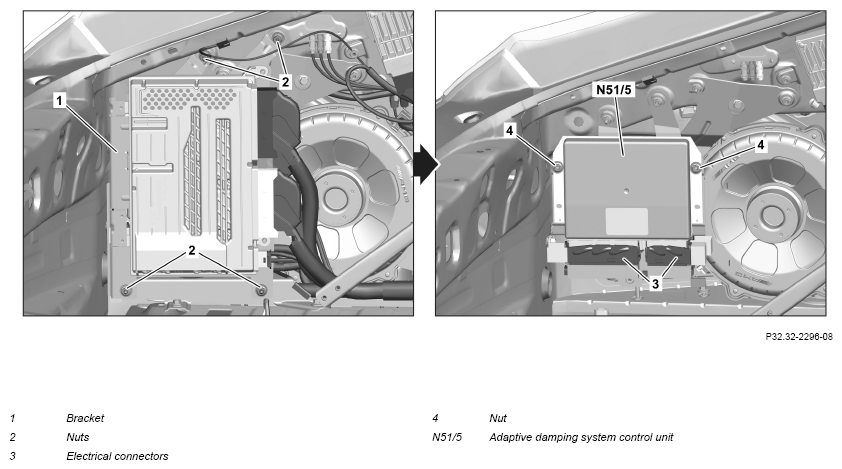

| 4 | Unscrew nuts (2) and set aside holder (1) with control units attached. | Model 290 with code 459 (Steel suspension with adjustable damping) with code 810 (Sound system) Model 290 with code 459 (Steel suspension with adjustable damping) with code 811 (Advanced sound system) |
|
| 5 | Disconnect electrical connection (3). | ||
| 6 | Unscrew nuts (4) and remove adaptive damping system control unit (N51/5). | ||
| 7 | Remove adaptive dampening system control unit (N51/5) from carrier plate. | When replacing the adaptive damping system control unit (N51/5). | |
| 8 | Install in the reverse order. |
