Remove/Install Seat Side Bolster For Backrest In Rear - AR91.12-P-1711FRX

Model 290

with code 287 (Through-loading feature)

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove seat cushion in rear passenger compartment.	Model 290 with code 287 (Through-loading feature) with code 568 (3-seater rear bench seat)	AR91.12-P-1021FR
		Model 290 with code 287 (Through-loading feature) except code 568 (3-seater rear bench seat)	AR91.12-P-1021FRX
2	Remove screw/bolt (2).	Bolt/nut for rear belt end fitting	*BA91.40-P-1005-01U
3	Remove seat belt end fitting (3) and hang to one side.

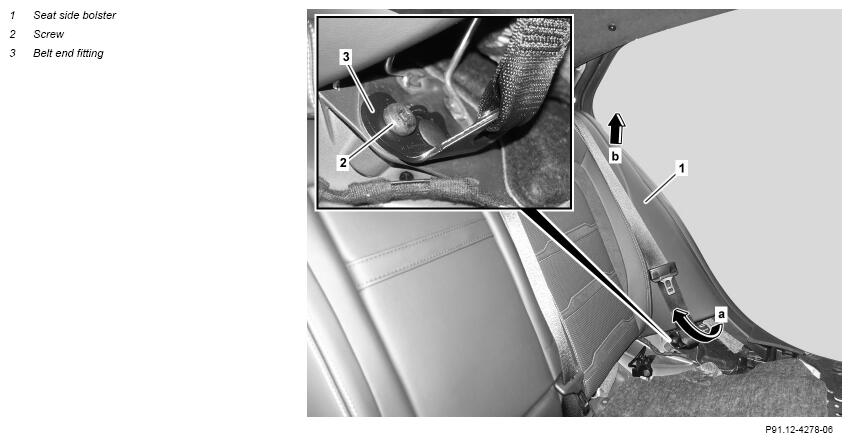

4	Lift seat side bolster (1) at bottom (arrow a), push upwards (arrow b) and remove.	Make sure that the seat side bolster (1) is seated correctly.
5	Install in the reverse order.

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 290
BA91.40-P-1005-01U	Bolt/nut for rear belt end fitting	Nm	35
