Remove/Install Left Rear Seat Backrest Cover - AR91.18-P-1875FRX
Model 290
with code 287 (Through-loading feature)
Shown except code 224 (Design individual rear seat system)
Shown except code 224 (Design individual rear seat system)
Shown with code 224 (Design individual rear seat system)
| Remove | |||
| 1 | Remove pivot bearing (6) of left seat backrest with left rear seat backrest inclination switch. | AR91.29-P-1773FR | |
| 2 | Remove head restraint guides. | AR91.16-P-1776FR | |
| 3.1 | Remove cover below head restraint. | Model 290 with code 224 (Rear individual seat design) with code 287 (Through-loading feature) |
|
| Fig 1 | |||

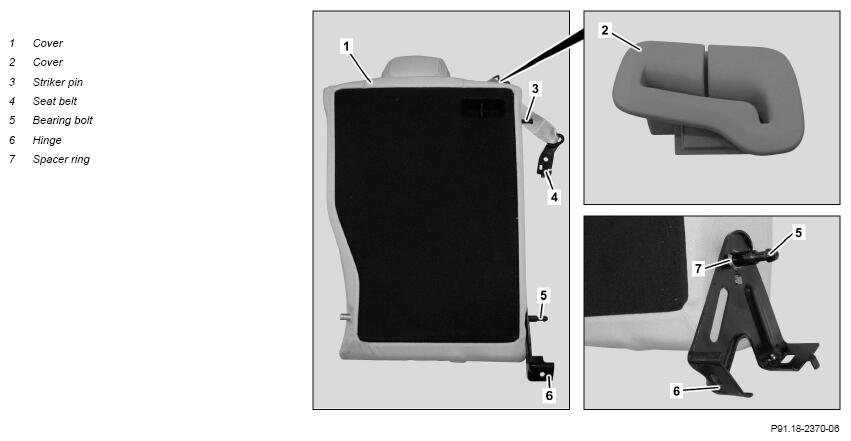

| 3.2 | Unclip the cover (2). | Model 290 with code 287 (Through-loading feature) except code 224 (Rear individual seat design) |
|
| Fig 1 | |||
| 4 | Unhook cover (1) all way around from seat backrest frame. | Fig 2 | |
| 5 | Guide electrical wiring harness of seat heating through cover (1). | Model 290 with code 287 (Through-loading feature) with code 872 (Left and right rear seat heating) |
|
| 6 | Remove seat backrest frame. | ||
| 7 | Slip cover (1) over seat backrest padding (8) and guide over bearing pin (5) and striker pin (3) while doing so. | Carefully guide cover (1) first over bearing pin (5) and then over striker pin (3). Otherwise the cover (1) may be damaged. |
|
| 8 | Guide cover (2) with seat belt (4) through cover (1). | Model 290 with code 287 (Through-loading feature) except code 224 (Rear individual seat design) |
|

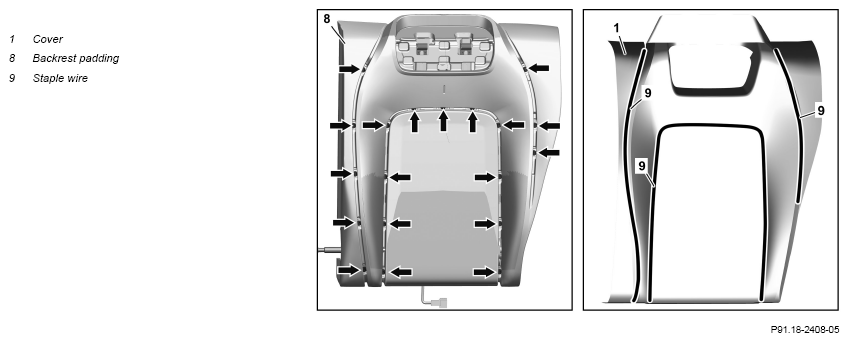

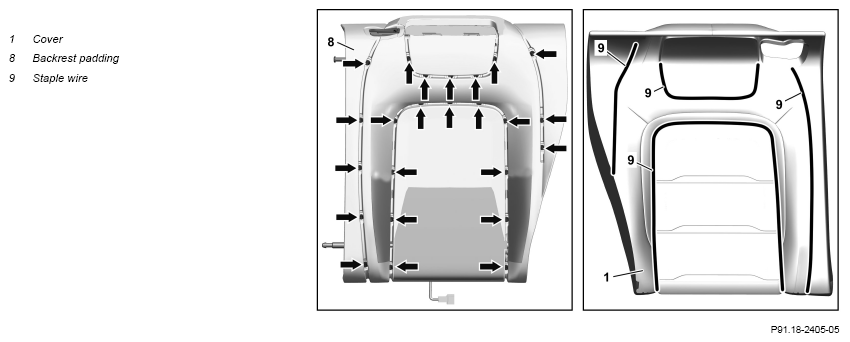

| 9 | Release staple wires (9) at attachment points (arrows). | AR91.18-P-1871-01FRX | |
| Fig 4 | |||
| Fig 3 | |||
| 10 | Remove cover (1) from seat backrest padding (8). | ||
| Install | |||
| 11 | Align cover (1) over seat cushion padding (8) such that the seams are seated in the cutouts of the seat cushion padding (8). | ||
| 12 | Fasten staple wires (9) at attachment points (arrows). | AR91.18-P-1871-01FRX | |
| Fig 4 | |||
| Fig 3 | |||
| 13 | Guide cover (2) with seat belt (4) through cover (1). | Model 290 with code 287 (Through-loading feature) except code 224 (Rear individual seat design) |
|
| 14 | Slip cover (1) over seat backrest padding (8) and guide over striker pin (3) and bearing pin (5) while doing so. | Carefully guide cover (1) first over the striker pin (3) and then over the bearing pin (5). Otherwise the cover (1) may be damaged. |
|
| 15 | Place seat backrest frame onto seat backrest padding (8) and align. | ||
| 16 | Guide electrical wiring harness of seat heating through cover (1). | Model 290 with code 287 (Through-loading feature) with code 872 (Left and right rear seat heating) |
|
| 17 | Hook-in cover (1) all way round on seat backrest frame. | Fig 2 | |
| 18.1 | Clip-in cover (2). | Model 290 with code 224 (Rear individual seat design) with code 287 (Through-loading feature) |
|
| 18.2 | Install cover below head restraint. | Model 290 with code 287 (Through-loading feature) except code 224 (Rear individual seat design) |
|
| 19 | Install head restraint guides. | AR91.16-P-1776FR | |
| 20 | Install pivot bearing (6) of left seat backrest with left rear seat backrest inclination switch. | AR91.29-P-1773FR |
