Unfasten/Fasten Rear Seat Backrest Cover - AR91.18-P-1871-01FRX

Model 206, 214, 236, 254

Model 223

Model 290

Model 294

Model 295

Model 296

Model 297

Model 463

Model 465

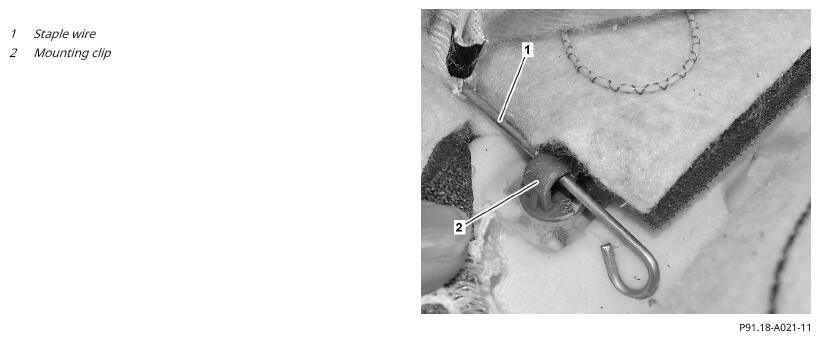

Method of installation A

Courtesy of MERCEDES-BENZ USA

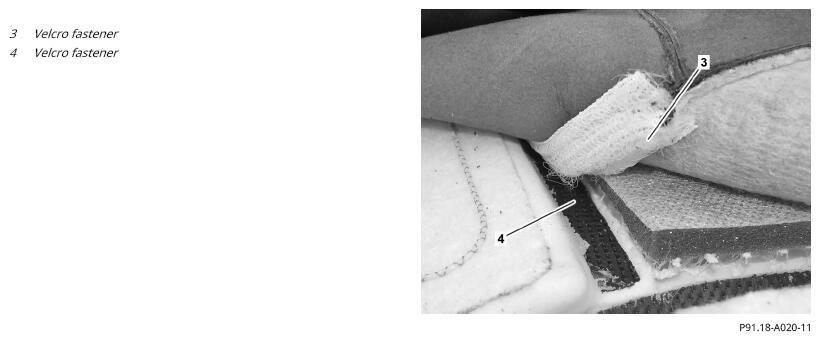

Method of installation B

Courtesy of MERCEDES-BENZ USA

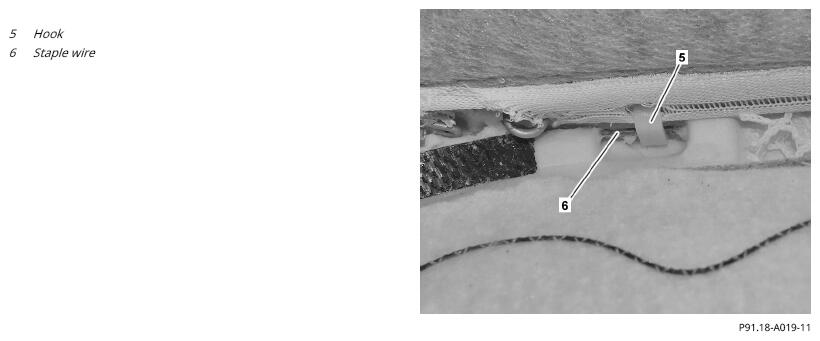

Method of installation C

Courtesy of MERCEDES-BENZ USA

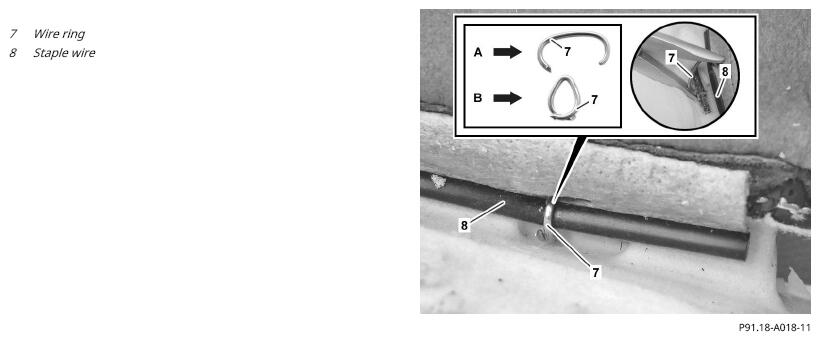

Method of installation D

Courtesy of MERCEDES-BENZ USA

Release

1. Unhook staple wire (1) from retaining clip (2) using dismantling tool.

   For covers with method of installation A

2. Release velcro fastener (3) from velcro fastener (4).

   For covers with method of installation B

3. Unhook hook (5) from staple wire (6).

   For covers with method of installation C

4. Remove wire ring (7) from staple wire (8).

   For covers with method of installation D

   Carefully remove residue of wire rings (7).

   Otherwise damage may occur.

   Mount

5. Hook staple wire (1) at retaining clip (2) using dismantling tool.

   For covers with method of installation A

6. Secure velcro fastener (3) at velcro fastener (4).

   For covers with method of installation B

7. Hook hook (5) at staple wire (6).

   For covers with method of installation C

8. Secure staple wire (8) with wire ring (7) onto eyelet of seat backrest padding.

   For covers with method of installation D

   Insert open wire ring (7) (arrow A) into padding clip pliers as shown and close completely by pressing together (arrow B).
