Remove/Install Heat Mat On Front Passenger Seat Cushion - AR91.30-P-0016FR
Model 257, 290
with code 401 (Climatised front seats)
except code U10 (Front passenger seat with weight sensor)
Model 257, 290
with code 873 (Left and right driver's seat heating)
except code U10 (Front passenger seat with weight sensor)
Model 257, 290
with code 902 (Seat heater Plus for driver and front passenger)
except code U10 (Front passenger seat with weight sensor)

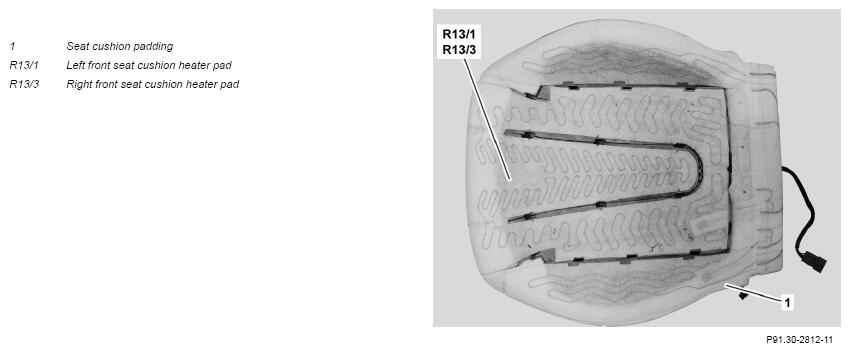

Shown on model 257 with code 873 (Seat heating for driver and front passenger)
| Remove/install | |||
| 1 | Remove cover of seat cushion padding (1). | Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 401 (Climatised front seats) except code U10 (Front passenger seat with weight sensor) Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 873 (Left and right driver's seat heating) except code U10 (Front passenger seat with weight sensor) Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 902 (Seat heater Plus for driver and front passenger) except code U10 (Front passenger seat with weight sensor) |
AR91.18-P-1802FRA |
| Model 257 with code 401 (Climatised front seats) except code 275 (Memory Package (driver's seat, steering column and mirror)) except code U10 (Front passenger seat with weight sensor) Model 257 with code 873 (Left and right driver's seat heating) except code 275 (Memory Package (driver's seat, steering column and mirror)) except code U10 (Front passenger seat with weight sensor) Model 257 with code 902 (Seat heater Plus for driver and front passenger) except code 275 (Memory Package (driver's seat, steering column and mirror)) except code U10 (Front passenger seat with weight sensor) |
AR91.18-P-1802FR | ||
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 2 | Warm front seat sitting surface heater pad (R13/1, R13/3) and carefully remove from seat cushion padding (1). | ||
| 000 588 15 84 00 Heat gun | Do not exceed temperatures of 60°C. Otherwise the structure of the seat cushion padding (1) changes. |
WS54.00-P-0125B | |
| 3 | Guide electrical wiring harness of front seat sitting surface heater pad (R13/1, R13/3) through seat cushion padding (1). | ||
| 4 | Install in the reverse order. |
