Remove/Install Cover On Front Passenger Seat Cushion - AR91.18-P-1802FR
Model 257
except code 275 (Memory Package (driver's seat, steering column and mirror))
Model 290
except code 275 (Memory Package (driver's seat, steering column and mirror))
except code 555 (AMG-Performance Seat)
Shown on model 257
Shown on model 257 with code 873 (Seat heating for driver and front passenger)
| Remove | |||
| 1 | Remove seat cushion padding (2). | AR91.10-P-5040FR | |
| 2 | Unhook cover (11) at side (arrows C). | ||

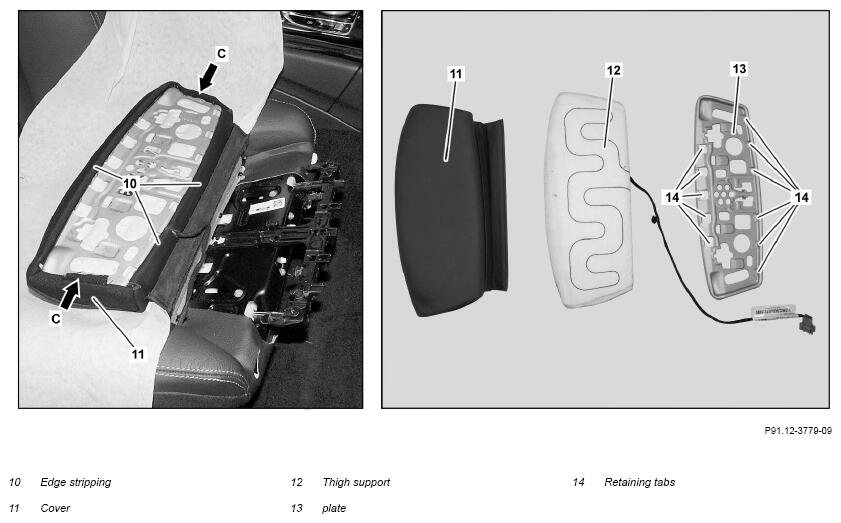

| 3 | Push retaining tabs (14) to one side and unhook piping (10). | Fig 1 | |
| 4 | Remove plate (13) from thigh rest (12). | ||
| 5 | Remove thigh rest (12) from cover (11). | ||
| 6 | Pull cover (1) over seat cushion padding (2). | ||

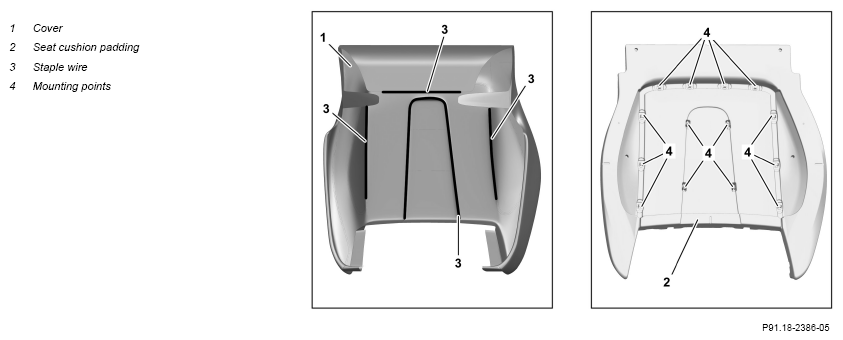

| 7 | Detach staple wires (3) from attachment points (4) of seat cushion padding (2). | AR91.18-P-1802-01LW | |
| Fig 3 | |||
| Fig 2 | |||
| 8 | Remove cover (1) from seat cushion padding (2). | ||
| Install | |||
| 9 | Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2). | ||
| 10 | Secure staple wires (3) to attachment points (4) of seat cushion padding (2). | AR91.18-P-1802-01LW | |
| Fig 3 | |||
| Fig 2 | |||
| 11 | Pull cover (1) over seat cushion padding (2). | ||
| 12 | Insert thigh rest (12) into cover (11) and smooth out creases in cover (11). | ||
| 13 | Insert plate (13) into thigh rest (12). | ||
| 14 | Hook in piping (10) and fix in place with retaining tabs (14). | Fig 1 | |
| 15 | Hook in cover (11) at side (arrows C). | ||
| 16 | Install seat cushion padding (2). | AR91.10-P-5040FR |
