Remove/Install Head Restraint Guides On Front Seat - AR91.16-P-0051FR
Model 257
Model 290
except code 555 (AMG-Performance Seat)

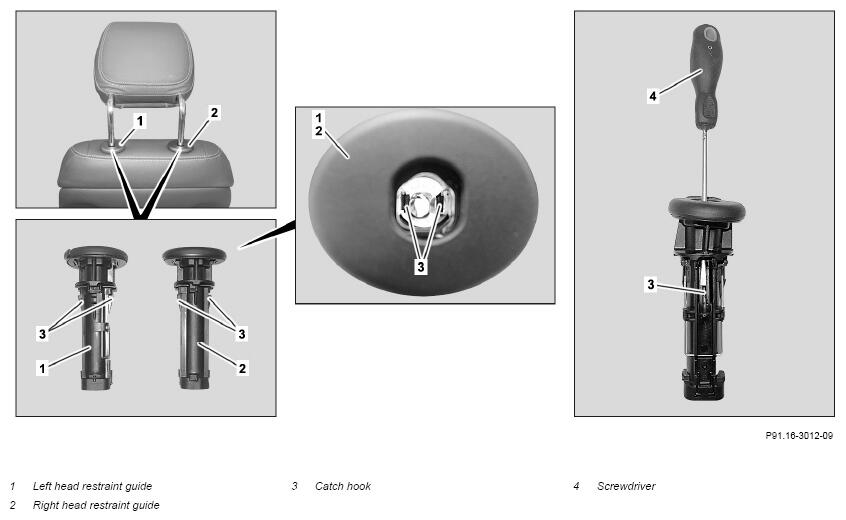

Shown on model 257 except code 275 (Memory Package)
| Remove | |||
| 1 | Remove head restraint from front seat. | AR91.16-P-0040FR | |
| 2 | Operate both catch hooks (3), as shown, using a screwdriver (4) and pull out left head restraint guide (1) or right head restraint guide (2) upwards. | ||
| Install | |||
| 3 | Insert left head restraint guide (1) or right head restraint guide (2) into backrest frame from above and latch into place. | ||
| 4 | Install head restraint at front seat | AR91.16-P-0040FR |
