Remove/Install Head Restraint On Front Seat - AR91.16-P-0040FR

Model 257

Model 290

except code 555 (AMG-Performance Seat)

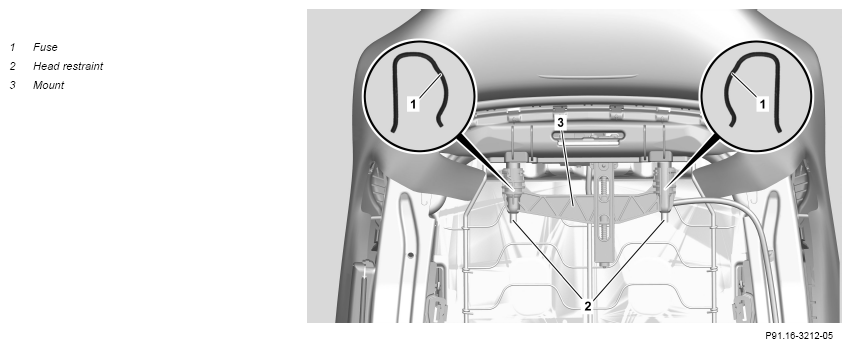

Shown on model 257 with code 275 (Memory Package)

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove seat backrest trim.	Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 290 with code 275 (Memory Package (driver's seat, steering column and mirror)) except code 555 (AMG-Performance Seat)	AR91.10-P-1912FR
2	Remove locking clips (1).	Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 290 with code 275 (Memory Package (driver's seat, steering column and mirror)) except code 555 (AMG-Performance Seat)
		Ensure correct installation position of locking clips (1).
3	Adjust seat backrest toward rear.
4	Guide head restraint (2) out of mount (3).	Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 290 with code 275 (Memory Package (driver's seat, steering column and mirror)) except code 555 (AMG-Performance Seat)
5	Pull head restraint (2) out of head restraint guides.
6	Install in the reverse order
