Remove/Install Front Seat Belt - AR91.40-P-1010FR
Model 257, 290

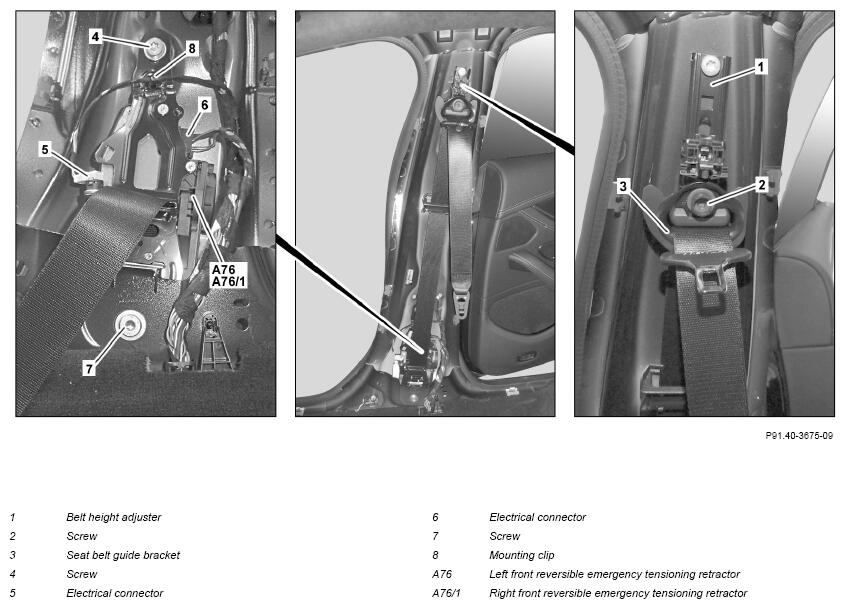

Shown on model 257 on the right side of the vehicle
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove B-pillar trim. | AR68.30-P-4700FR | |
| 2 | Disconnect ground line from on-board electrical system battery. | AR54.10-P-0003FR | |
| 3 | Remove bolt (2) and remove seat belt guide bracket (3) from seat belt height adjuster (1). | *BA91.40-P-1002-01U | |
| 4 | Disconnect electrical connector (5). | Fig 1 | |
| 5 | Unclip retaining clip (8). | Fig 2 | |
| 6 | Disconnect electrical connector of driver belt force limiter or front passenger belt force limiter. | Model 257, 290 with code 460 (Canada version) Model 257, 290 with code 494 (US version) Model 257, 290 with code 498 (Japanese version) |
|
| 7 | Unscrew screw (4). | *BA91.40-P-1001-01U | |
| 8 | Unscrew bolt (7). | *BA91.40-P-1001-01U | |
| 9 | Remove reversible belt tensioner at front (A76, A76/1) or from B-pillar. | ||
| 10 | Disconnect electrical connector (6) and remove reversible belt tensioner at front (A76, A76/1) with seat belt. | ||
| 11 | Dispose of removed reversible belt tensioner at front (A76, A76/1) in proper manner. | When replacing front reversible emergency tensioning retractor (A76, A76/1). | |
| 12 | Install in the reverse order. | ||
| 13 | Commission PRE-SAFE® system using vehicle diagnosis system. | When replacing front reversible emergency tensioning retractor (A76, A76/1). | |
| AD00.00-P-2000-06FR | |||
| 14 | Check seat belt slack reduction for proper operation. | If the seat belt slack reduction function is not activated in the instrument cluster, ↓ activate the function in the instrument cluster. |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA91.40-P-1001-01U | Bolt, front seat belt retractor | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA91.40-P-1002-01U | Bolt, front belt guide bracket | Nm | 35 | 35 |
