Remove/Install Paneling On B-Pillar - AR68.30-P-4700FR

Model 257

Model 290

Courtesy of MERCEDES-BENZ USA

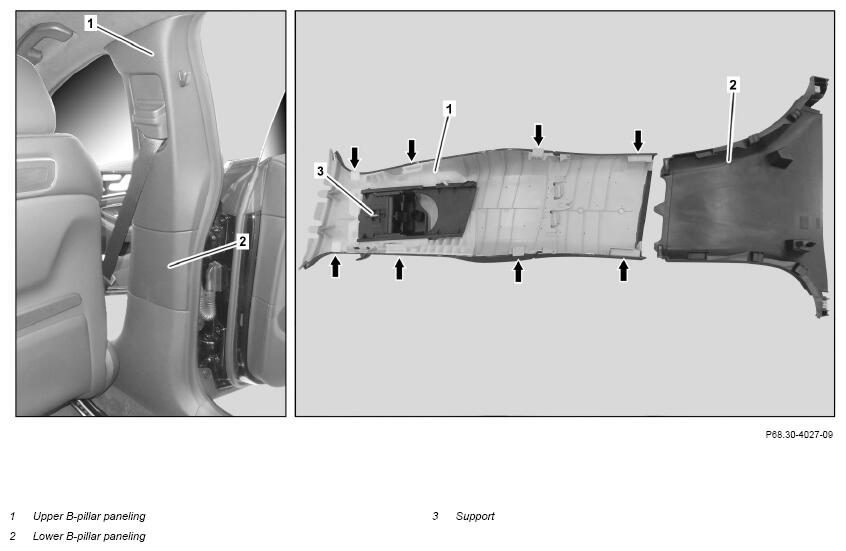

Shown on model 257

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Move front seat toward the front to end position.
2	Remove front and rear door sills.
3	Remove outer trim from seat frame.		AR91.10-P-1201FR
4	Remove seat belt end fitting.	Model 257, 290 with code 460 (Canada version) Model 257, 290 with code 494 (US version)	AR91.40-P-1030-02FRA
		Model 257, 290 except code 460 (Canada version) except code 494 (US version)	AR91.40-P-1030-02FR
5	Detach edge guard in area of upper B-pillar trim (1) and in area of lower B-pillar trim (2).	Ensure that edge guard is seated correctly.
6	Unclip upper B-pillar trim (1) at retaining tabs (arrows), guide out in downward direction, and remove from seat belt.	Position support (3) of upper B-pillar trim (1) on screw at seat belt guide bracket.
		Long wedge	Fig 1
7	Unclip lower B-pillar trim (2) and remove.	Long wedge	Fig 1
8	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
