Remove/Install Center Rear Folding Seat Backrest - AR91.12-P-1723FR

Model 257

with code 287 (Through-loading feature)

Model 290

with code 287 (Through-loading feature)

except code 224 (Individual rear seats)

Shown on model 257

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

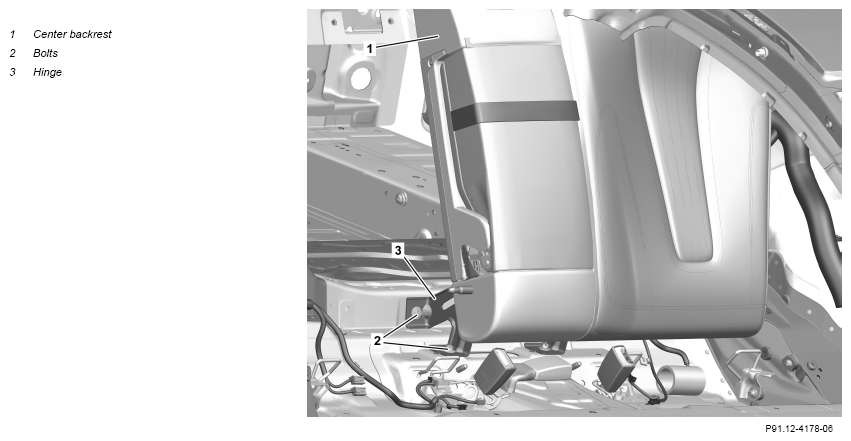

1	Remove right rear folding seat backrest.		AR91.12-P-1722FR
2	Release center seat backrest (1).
3	Remove screws (2) from pivot bearing (3).	Bolt, center pivot bearing to body	*BA91.12-P-1004-03M
4	Guide pivot bearing (3) out of crossbar and out of center seat backrest (1) at the same time.	Do not tilt the pivot bearing (3). Otherwise, the spacer ring in the pivot bearing (3) may be damaged.
5	Pull center seat backrest (1) off left seat backrest and remove.	Do not tilt center seat backrest (1). Otherwise, the spacer ring in the center seat backrest (1) may be damaged
6	Install in the reverse order
