Remove/Install Rear Air Conditioning System Operating Unit - AR83.30-P-6641FRX
Model 290 as of model year 2023 with code 224 (Individual rear seats) with code 581 (Automatic climate control)

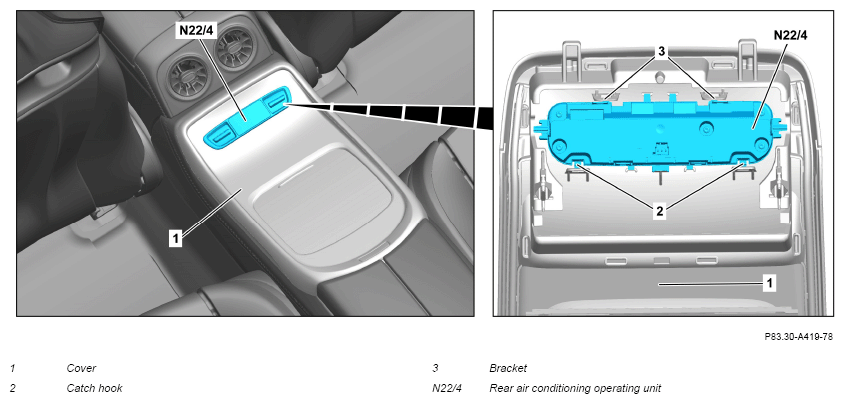

Fig 1: Rear Air Conditioning System Operating Unit Components Location - Model 290 As Of Model Year 2023 With Code 224, 581
| Remove/install | |||
| 1 | Remove cover (1) on center console in rear passenger compartment. | AR68.20-P-2202FRX | |
| 2 | Release catch hooks (2) and remove rear climate control operating unit (N22/4) from holders (3). | ||
| 3 | Install in the reverse order. |
