Remove/Install Cover On Center Console In Rear Passenger Compartment - AR68.20-P-2202FRX
Model 290 with code 224 (Individual rear seats)

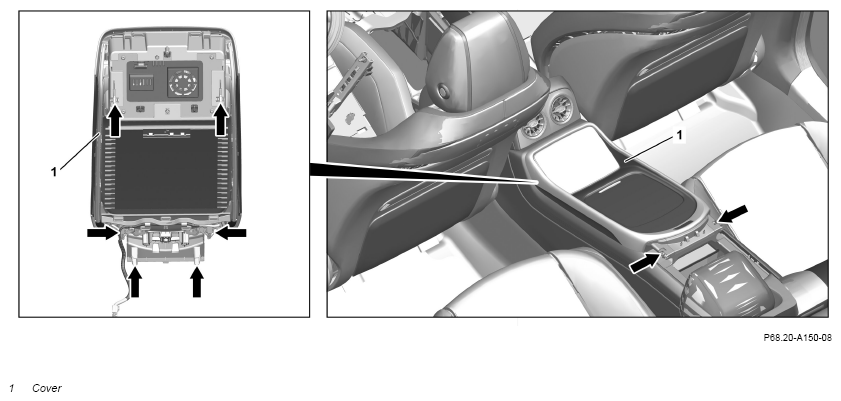

Shown up to model year 2023

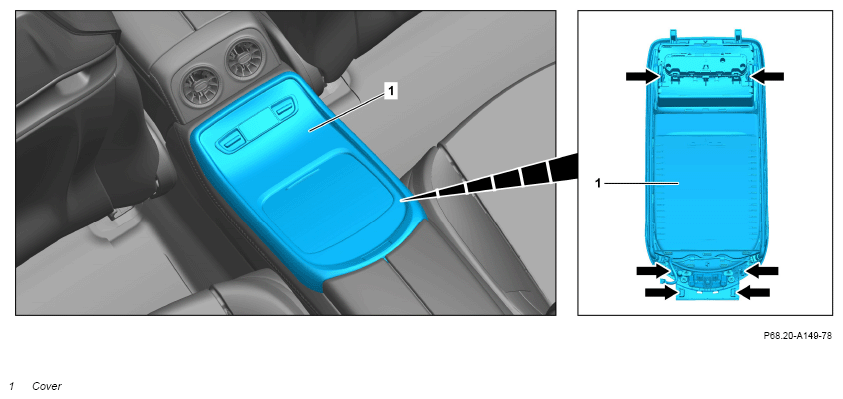

Shown as of model year 2023
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Open cap of the armrest. | ||
| 3 | Unclip cover (1) at rear and front (arrows). | ||
| 4 | Release and disconnect electrical connectors at cover (1). | ||
| 5 | Extend cover (1) toward the rear and remove. | ||
| 6.1 | Remove touchscreen in rear passenger compartment. | Model 290 up to model year 2023 with code 224 (Individual rear seats) When replacing cover (1). |
|
| AR54.21-P-0063FRX | |||
| 6.2 | Remove rear air conditioning system operating unit. | Model 290 as of model year 2023 with code 224 (Individual rear seats) with code 581 (Automatic climate control) When replacing cover (1). |
|
| AR83.30-P-6641FRX | |||
| 7 | Install in the reverse order. |
